Part Number : 513-403-10E

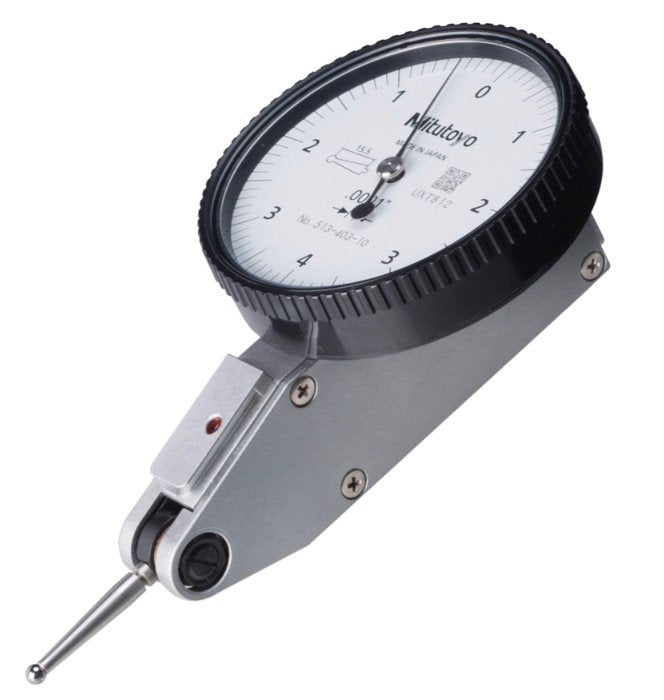

The Mitutoyo 513-403-10E is a horizontal-type dial test indicator from Series 513, engineered for extremely fine measurement tasks in imperial units. Delivered as a Basic Set, it offers highly sensitive readings suited for precision inspection work. With an ultra-fine 0.008-inch range and 0.0001-inch graduation, it ensures exceptional accuracy and repeatability. Equipped with a 9.52 mm (3/8 inch) stem for easy mounting in standard indicator holders. Ideal for ultra-precision machining, fine-tolerance checking, and detailed quality control inspections.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-4-0
Digital/Analog	Analog
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Mass (main unit)	58 g
Measuring Force	0.01 - 0.3 N
Range	0.008 Inch
Repeatability	+/-0.00004 Inch
Series	513
Set Type	Basic Set
Size	Stem Size : 9.52 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.0001 inches, providing high-resolution measurements.
Range: 0.008 inches, suitable for precise displacement measurements.
Dial Reading: 0–4–0, facilitating easy interpretation of measurements.
Accuracy: ±0.0001 inches, ensuring precise measurements.
Measuring Force: 0.3 N or less, minimizing impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.
