Mitutoyo 513-404-10A | Dial Test Indicator | Horizontal Type | Series 513 | Plus Set | Stem 4/8 mm | Graduation 0.01 mm | Range 0.8 mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 513-404-10A

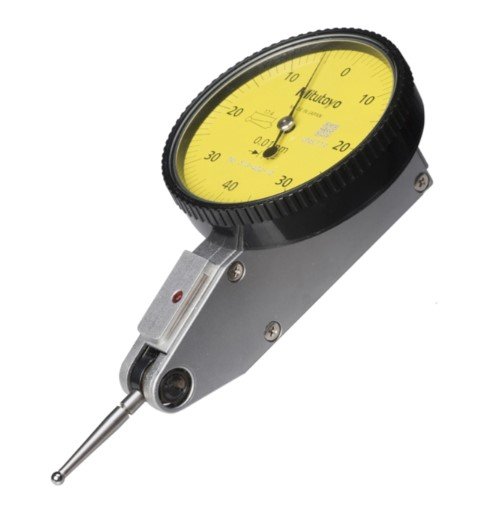

The Mitutoyo 513-404-10A is a high-precision horizontal dial test indicator from Series 513. It includes both 4 mm and 8 mm stems, allowing flexible mounting across various setups. With a 0.8 mm measuring range and 0.01 mm graduation, it offers reliable and repeatable accuracy. Supplied as a Plus Set, it comes with additional accessories for enhanced usability. Perfect for alignment, runout inspection, and surface flatness measurements in professional environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	3 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	8 µm
Range	0.8 mm
Repeatability	3 µm
Series	513
Set Type	Plus Set
Size	Stem Size : 4/8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm for precise measurements.
Range: 0.8 mm, suitable for various measurement tasks.
Dial Reading: 0–40–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Contact Point: Carbide, offering durability and resistance to wear.
Included Accessories: Comes with 8 mm and 4 mm stems, providing flexibility for various setups.

DOWNLOAD CATALOG
