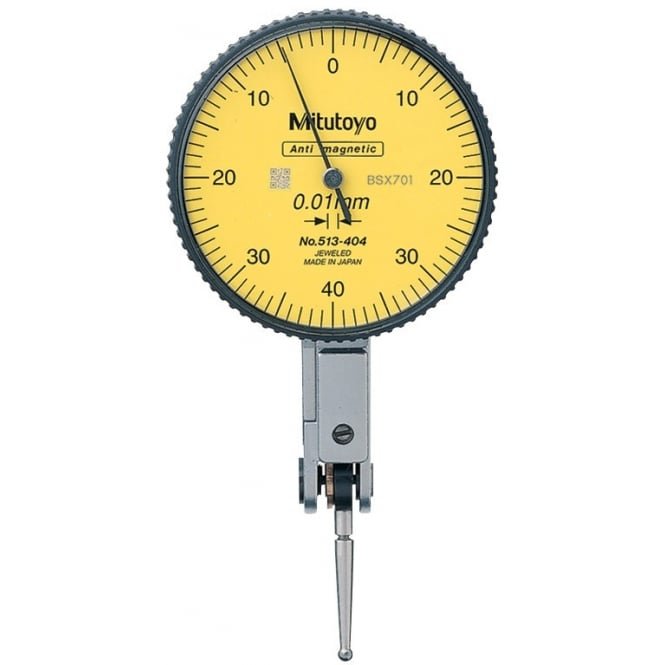

Mitutoyo 513-404E Lever Indicator Range 0.8mm, Graduation 0.01 mm
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

- Specifications
- Features
- Downloads
Accuracy | +/-8 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 0-40-0 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 0.3N or less |
Measuring Units | Millimetre |
Range | 0.8mm |
SKU | 513-404E |
Type | Lever |
Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
• No-clutch structure for automatic reversal of measuring direction.
• Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
• The glare-free flat crystal face has a scratch resistant coating.
• High sensitivity and quick response due to low-friction jewelled bearings.
