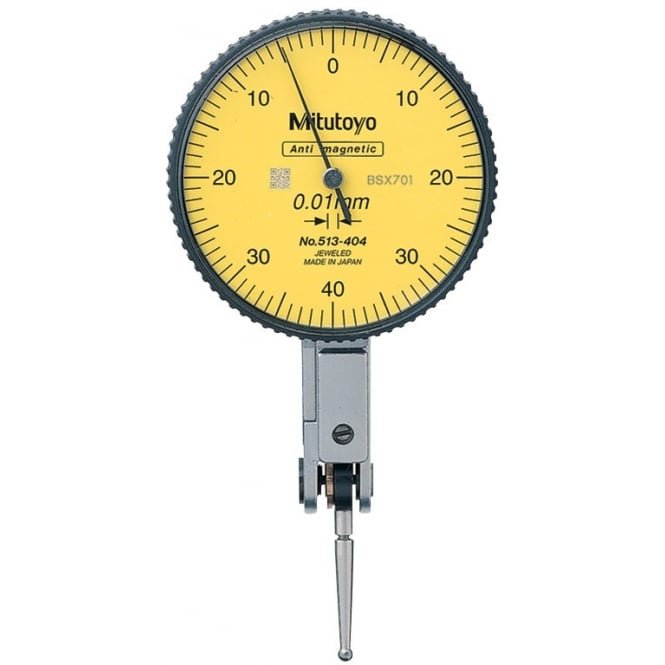

Mitutoyo 513-404T | Lever Indicator Full Set | 0.8 mm range, 0.01 mm grad
The Mitutoyo 513-404T is an anti-magnetic lever indicator (dial test indicator) reading 0.01 mm per division over 0.8 mm. Alignment of machine tools and similar jobs is what the 513-404T is designed for.
- 513-404T adapts to the measuring direction automatically on contact
- Low-friction jewelled movement (513-404T)
- Dial reading 0-40-0, measuring force 0.3 N or less (513-404T)
- 513-404T comes with a comprehensive mounting accessory set and interchangeable styli
- Analogue dial on the 513-404T, reading in millimetre, with no data output
- Specifications
- Features
- Downloads
| Part Number | 513-404T |
| Brand | Mitutoyo |
| Type | Lever indicator (dial test indicator) |
| Range | 0.8 mm (0.031 in) |
| Graduation | 0.01 mm |
| Dial Reading | 0-40-0 |
| Measuring Force | 0.3 N or less |
| Measuring Units | Millimetre |
| Data Output | No |
| Display | Analogue (non-digital) |
| Supplied With | Comprehensive mounting accessory set, interchangeable styli |
Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
• No-clutch structure for automatic reversal of measuring direction.
• Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
• The glare-free flat crystal face has a scratch resistant coating.
• High sensitivity and quick response due to low-friction jewelled bearings
