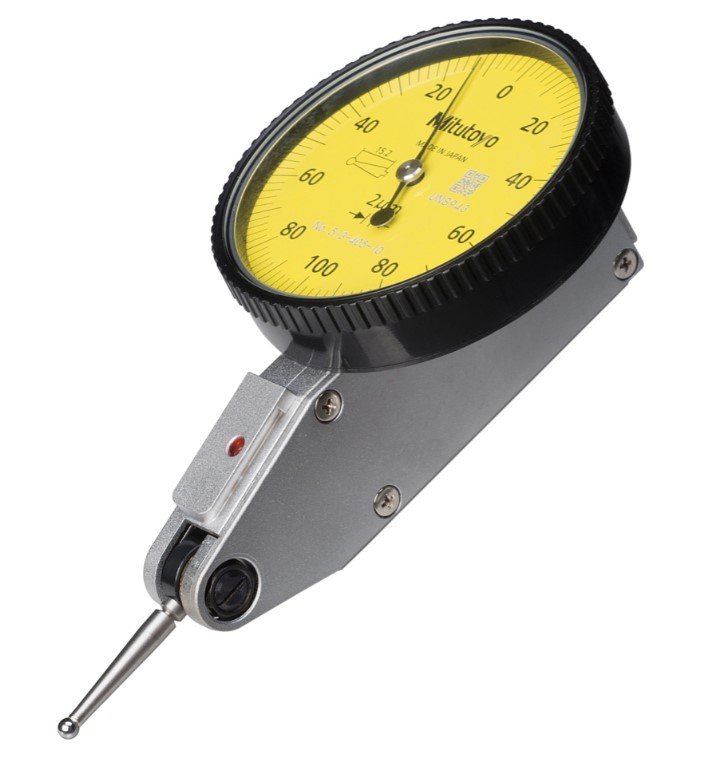

Mitutoyo 513-405-10T | Horizontal Dial Test Indicator | 0.002 mm grad., 0.2 mm range, Full Set
Part Number : 513-405-10T
Part number 513-405-10T is a horizontal Series 513 dial test indicator from Mitutoyo that resolves 0.002 mm across 0.2 mm, in the Full Set form. The 513-405-10T suits alignment work, tooling set-ups and inspection work. The 513-405-10T is graduated in metric units.
- Stem: 4 mm and 8 mm, 513-405-10T
- Dial 0-100-0; repeatability 1 µm (513-405-10T)
- Hysteresis of 2 µm at 0.01 - 0.3 N measuring force on the 513-405-10T
- 513-405-10T: Full Set includes a swivel clamp
- Thread M 1.7 x 0.35 for the contact point, 513-405-10T
- Main unit mass 45 g (513-405-10T)
