Mitutoyo 513-415-10A | Dial Test Indicator | Horizontal Type | Series 513 | Plus Set | Stem 4/8 mm | Graduation 0.01 mm | Range 1 mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 513-415-10A

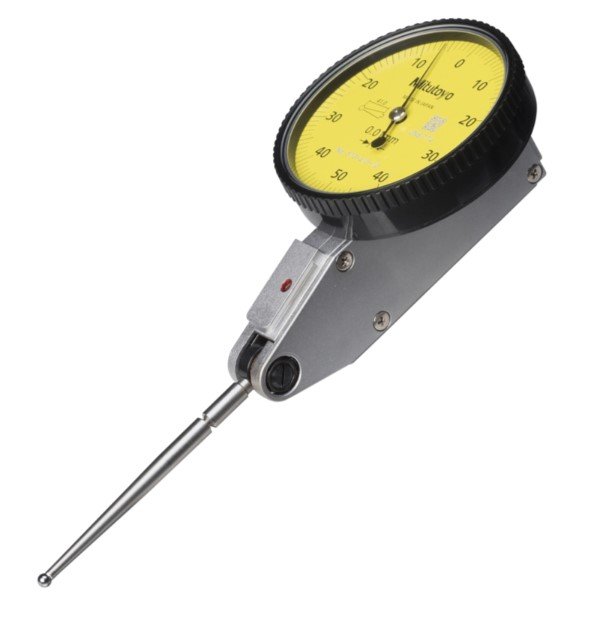

The Mitutoyo 513-415-10A is a robust horizontal dial test indicator from the trusted Series 513. It offers 4 mm and 8 mm stems for versatile mounting on various measuring setups. With a 1 mm range and 0.01 mm graduation, it ensures accurate and repeatable results. Supplied as a Plus Set, it includes essential accessories for added convenience and flexibility. Ideal for professional applications such as alignment, runout checking, and precision inspection.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	10 µm
Range	1 mm
Repeatability	3 µm
Series	513
Set Type	Plus Set
Size	Stem Size : 4/8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm for precise, high-resolution measurements.
Range: 1.0 mm, suitable for a variety of measurement applications.
Dial Reading: 0–50–0, making it easier to read and interpret measurements.
Measuring Force: 0.2 N or less, reducing impact on the measured surface.
Contact Point: Carbide, ensuring durability and wear resistance.
Included Accessories: Comes with both 8 mm and 4 mm stems, offering flexibility for different setups.

DOWNLOAD CATALOG
