Mitutoyo 513-415E Long Stylus Lever Indicator Range 1mm, Graduation 0.01 mm

Name: Mitutoyo 513-415E Long Stylus Lever Indicator Range 1mm, Graduation 0.01 mm
Brand: Mitutoyo
SKU: 513-415E
Availability: InStock

Part Number : 513-415E

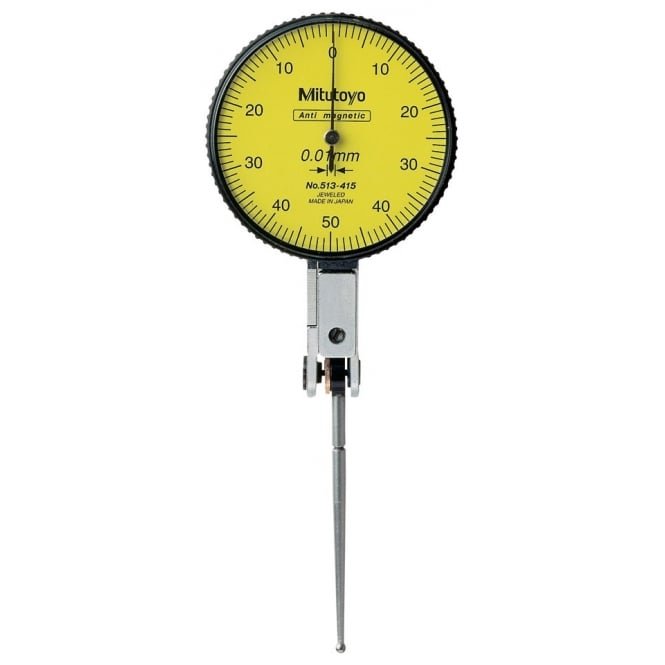

A Mitutoyo versatile long stylus, anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-10
Brand	Mitutoyo
Data Output	No
Dial Reading	0-50-0
Display Type	Non-digital
Graduations	0.01mm
Measuring Force	0.2N or less
Measuring Units	Millimetre
Range	1mm
SKU	513-415E
Type	Lever

• Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
• No-clutch structure for automatic reversal of measuring direction.
• Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
• The glare-free flat crystal face has a scratch resistant coating.
• High sensitivity and quick response due to low-friction jewelled bearings
