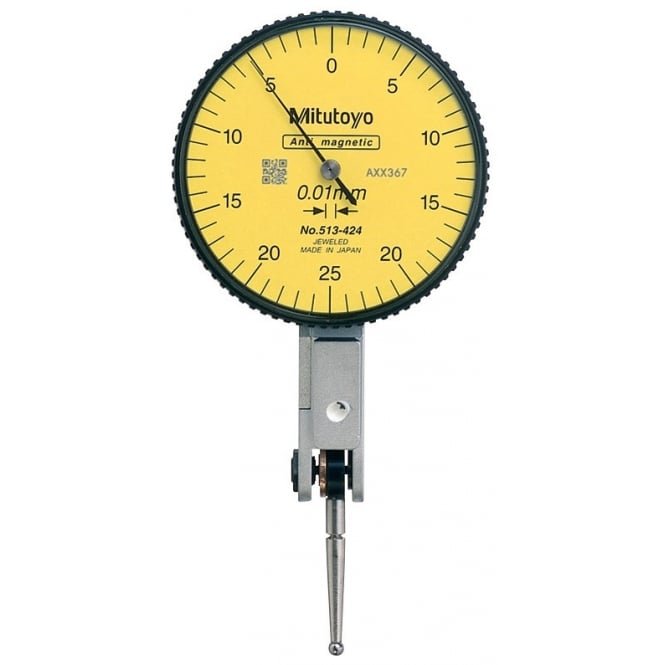

Mitutoyo 513-424T Lever Indicator Range 0.5mm, Graduation 0.01mm Full Set
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-5 |
Brand | Mitutoyo |
Data Output | No |
Dial Reading | 0-25-0 |
Display Type | Non-digital |
Graduations | 0.01mm |
Measuring Force | 0.3N or less |
Measuring Units | Millimetre |
Range | 0.5mm |
SKU | 513-424T |
Type | Lever |
- Drastically enhanced durability, sensitivity and visibility.
- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
