Part Number : 513-426-10E

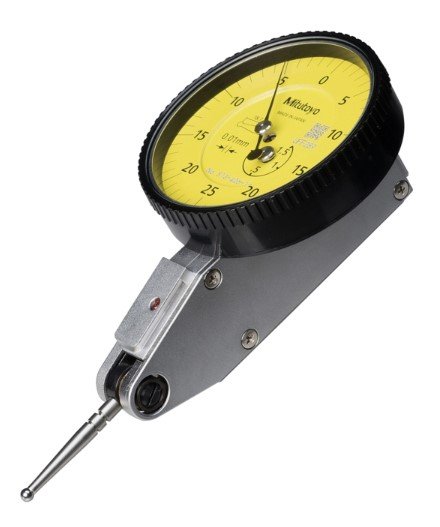

The Mitutoyo 513-426-10E is a horizontal-type dial test indicator from the reliable Series 513. Designed for precision inspection tasks, it offers a wide 1.5 mm measuring range. With 0.01 mm graduation, it provides accurate, repeatable measurements. Its 8 mm stem ensures compatibility with standard holders and setups. Supplied as a basic set, ideal for machinists and quality control professionals.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-25-0
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	4 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring Force	0.01 - 0.4 N
Measuring range	16 µm
Range	1.5 mm
Repeatability	3 µm
Series	513
Set Type	Basic Set
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm graduation for highly accurate and precise measurements.
Measuring Range: 1.5 mm range, suitable for a wide range of measurement tasks.
Dial Reading: 0–25–0 dial provides easy-to-read and precise measurement results.
Low Measuring Force: 0.4 N or less to minimize impact on the measured surface.
Carbide Contact Point: Durable, anti-magnetic contact point for enhanced reliability and longevity.
Stem Size: Equipped with an 8 mm stem for compatibility with most standard holders.
