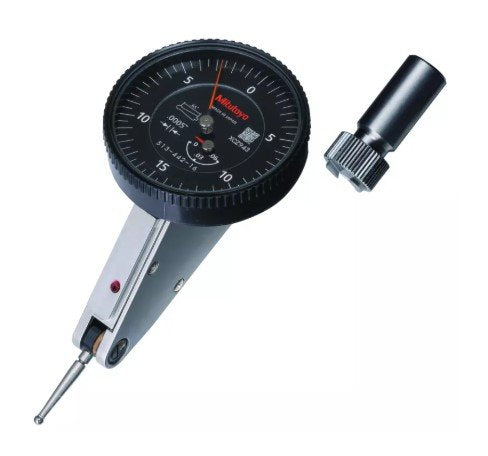

Mitutoyo 513-442-16A | Horizontal Dial Test Indicator, 20° Face | 0.0005 in graduation, 0.06 in range
Part Number : 513-442-16A
Mitutoyo's 513-442-16A is the Plus Set version of the Series 513 horizontal dial test indicator, with 0.0005 inch graduation and a 0.06 inch range, with its dial face tilted 20° for easier reading. Typical tasks for the 513-442-16A include surface profiling. The 513-442-16A dial is marked in inches.
- Stem: 4 mm and 9.52 mm on the 513-442-16A
- 0-15-0 dial with ±0.0002 inch repeatability, 513-442-16A
- 0.01 - 0.3 N measuring force and 0.0002 inch hysteresis (513-442-16A)
- Supplied as the Plus Set on the 513-442-16A
- 513-442-16A: glare-free, scratch-resistant crystal and carbide contact points
- Contact points fit an M 1.7 x 0.35 thread, 513-442-16A
