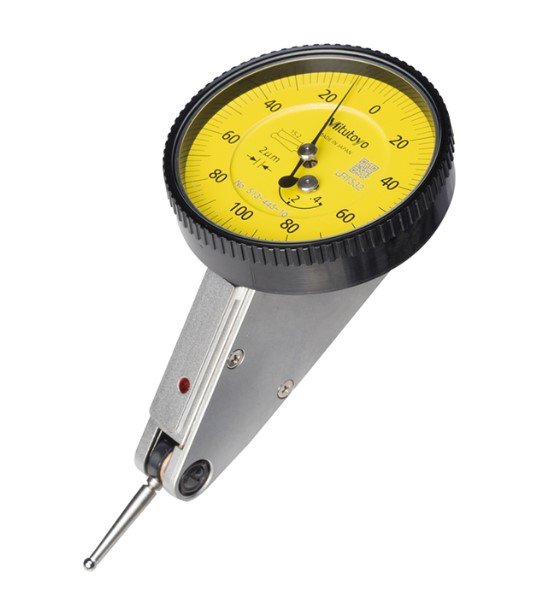

Mitutoyo 513-444-10T | Horizontal Dial Test Indicator, 20° Face | 0.01 mm grad., 1.6 mm range, Full Set
Part Number : 513-444-10T
Reading 0.01 mm steps over 1.6 mm, the Mitutoyo 513-444-10T is a Series 513 horizontal dial test indicator delivered as the Full Set; its 20° tilted face makes the dial easier to read. Stated uses for the 513-444-10T include work in tight or recessed areas. The 513-444-10T reads in metric units.
- Stem: 4 mm and 8 mm on the 513-444-10T
- 513-444-10T: repeatability 3 µm on a 0-40-0 dial
- Measuring force 0.01 - 0.3 N, hysteresis 4 µm, 513-444-10T
- Full Set includes a swivel clamp (513-444-10T)
- Tip number 103006, thread M 1.7 x 0.35 on the 513-444-10T
- 513-444-10T: weighs 48 g
Free UAE shipping available
For pricing, please contact our experts.
