Part Number : 513-471-10E

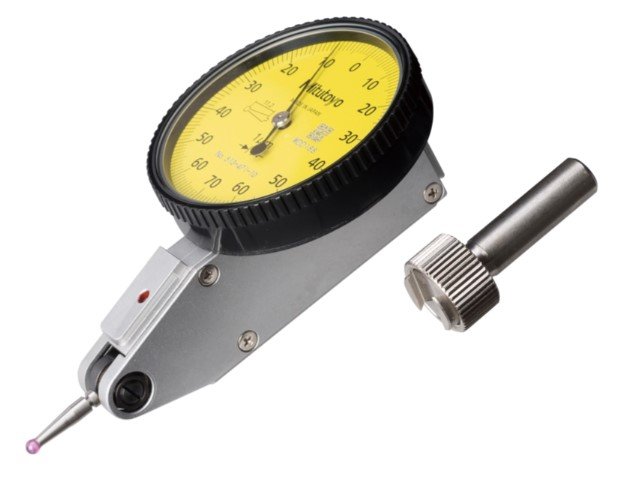

The Mitutoyo 513-471-10E is a horizontal dial test indicator from Series 513, designed for ultra-precision tasks. Equipped with a ruby stylus tip, it ensures low-friction, smooth movement, ideal for sensitive surfaces. With a 0.14 mm measuring range and ultra-fine 0.001 mm graduation, it delivers exceptional resolution and accuracy. The 8 mm stem offers compatibility with a variety of holders and setups. Perfect for high-precision inspection, surface profiling, and delicate component measurements.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-70-0
Digital/Analog	Analog
Graduation	0.001 mm
Hysteresis	2 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring depth max. L	0.01 - 0.3 N
Measuring range	3 µm
Range	0.14 mm
Repeatability	1 µm
Series	513
Set Type	Basic Set
Size	Stem Size : 8 mm
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.001 mm, ensuring high-resolution measurements.
Range: 0.14 mm, suitable for precise displacement measurements.
Dial Reading: 0–70–0, facilitating easy interpretation of measurements.
Measuring Force: 0.3 N or less, ensuring minimal impact on the measured surface.
Contact Point: Ruby, offering durability and resistance to wear.
Included Accessories: Comes with an 8 mm plain stem, providing flexibility for various setups.

DOWNLOAD CATALOG
