Part Number : 513-474-10E

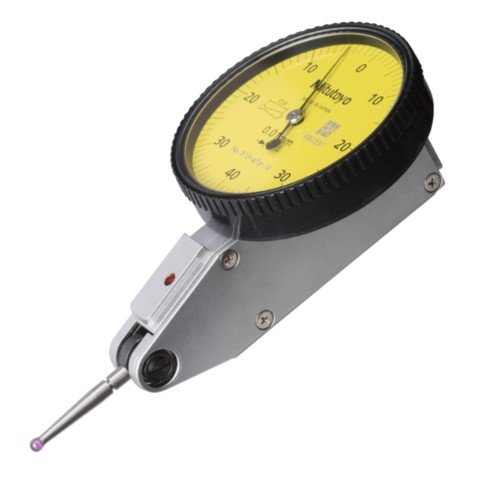

The Mitutoyo 513-474-10E is a precision horizontal dial test indicator from Series 513. It comes equipped with a ruby stylus for high durability and smooth contact on delicate surfaces. Offers a 0.8 mm measuring range with 0.01 mm graduations for detailed inspection work. Its 8 mm stem ensures easy integration with standard indicator holders. Ideal for precision alignment, flatness, and runout measurements in demanding environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Contact point	Thread M 1.7 x 0.35
Dial Reading	0-40-0
Digital/Analog	Analog
Graduation	0.01 mm
Hysteresis	3 µm
Inch-Metric	Metric
Mass (main unit)	45 g
Measuring range	8 µm
Range	0.8 mm
Repeatability	3 µm
Series	513
Type	Dial Test Indicator
Type	Horizontal

Graduation: 0.01 mm for high-precision measurements.
Range: 0.8 mm, offering flexibility for various measurement tasks.
Dial Reading: 0–40–0 for clear, easy-to-read results.
Measuring Force: 0.3 N or less, minimizing the impact on the measured surface.
Contact Point: 2 mm ruby stylus, providing durability and wear resistance.
Stem Size: Equipped with an 8 mm stem for compatibility with most standard holders.
