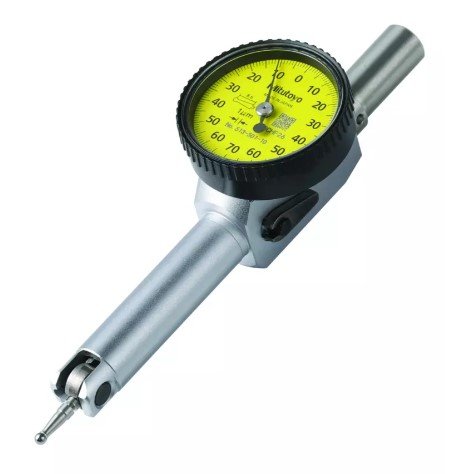

Mitutoyo 513-503-10E | Pocket Dial Test Indicator | 0.002 mm graduation, 0.2 mm range, Basic Set
Part Number : 513-503-10E
Mitutoyo's 513-503-10E is the Basic Set version of the Series 513 pocket dial test indicator, with 0.002 mm graduation and a 0.2 mm range. The 513-503-10E takes a 8 mm stem for mounting. The 513-503-10E dial is marked in metric units.
- 513-503-10E: 0-100-0 dial with 1 µm repeatability
- Measuring force ≤ 0.4 N, 513-503-10E
- Supplied as the Basic Set (513-503-10E)
- Jewelled bearings and O-ring sealed bezel against dust and oil on the 513-503-10E
- 513-503-10E: uses contact point 103010 (M 1.7 x 0.35 thread)
- Stylus 2 mm, 513-503-10E
Free UAE shipping available
For pricing, please contact our experts.
