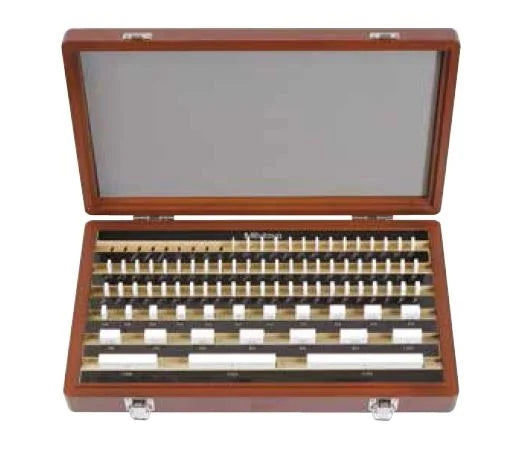

Mitutoyo 516-302-11 | 81-piece Cera Gauge Block Set, Inch, Grade 0

Name: Mitutoyo 516-302-11 | 81-piece Cera Gauge Block Set, Inch, Grade 0
Brand: Mitutoyo
SKU: 516-302-11
Availability: InStock

Part Number : 516-302-11

A Mitutoyo gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Brand	Mitutoyo
Grade	0
Material	CERA
No. of Blocks	81
Set Configuration	0.1001-0.1009 by 0.0001 step,0.101-0.149 by 0.001 step,0.05-0.95 by 0.05 step, 1-4 by 1 step

Made of high quality alloy steel, carefully heat treated and stress relieved for high stability and precision lapped for good wringing properties. Slightly rounded edges.
Each gauge block is marked with an identification number.
Gauge block hardness is 800 HV (64 HRC) for high wear resistance.
Gauge block sets are placed in their wooden storage box immediately after calibration.
