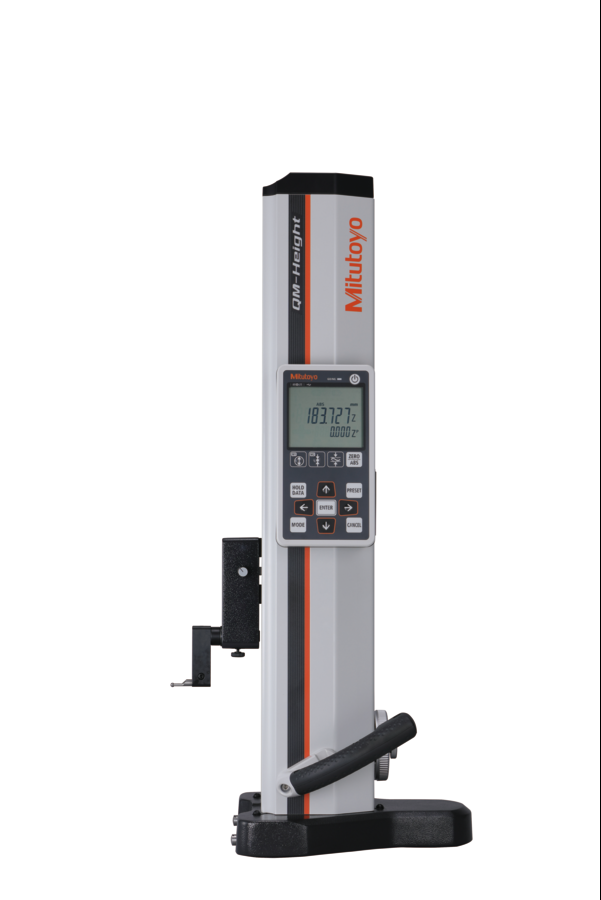

Mitutoyo 518-240 | QM-Height Digital Height Gauge | 0–350 mm, No Air Floating
Part Number : 518-240
This QM-Height, Mitutoyo 518-240, measures over 0–350 mm and is the version without air floating. With 0.001/0.005 mm resolution, it offers 7 µm perpendicularity and 1.8 µm repeatability.
- Icon commands make diameter and pitch measurements quick
- GO/±NG checks once tolerances are entered
- Part programs can be taught and replayed
- Manual drive, roller bearing guide, measuring force 1.5 ± 0.5 N
- Without air floating, battery life approx. 1200 h, mass 25 kg
- AA x 4 alkaline/Ni-MH batteries, AC adapter available as option
For pricing, please contact our experts.
