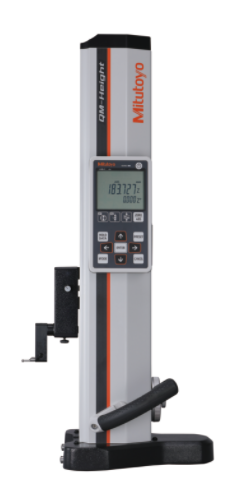

Mitutoyo 518-241 | QM-Height Digital Height Gauge | 0–14 in, No Air Floating
Part Number : 518-241
The Mitutoyo 518-241 is a QM-Height ABSOLUTE digital height gauge with a 0–14 in range, supplied without air floating. It resolves 0.00005/0.0001/0.0002 in (inch/metric) and has 7 µm perpendicularity with 1.8 µm repeatability.
- Icon-based commands for inside/outside diameter and pitch calculations
- GO/±NG judgement against set upper and lower tolerances
- Runs pre-learnt part programs automatically
- Roller bearing guiding, manual drive and 1.5 ± 0.5 N measuring force
- Without air floating, battery life approx. 1200 h, mass 25 kg on the 518-241
- Power from 4 x AA alkaline or Ni-MH cells, or optional AC adapter
For pricing, please contact our experts.
