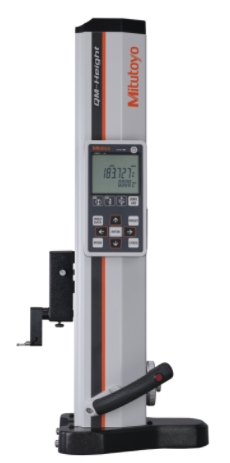

Mitutoyo 518-244 | QM-Height Digital Height Gauge | 0–350 mm, Air Floating
Part Number : 518-244
This QM-Height, Mitutoyo 518-244, measures over 0–350 mm and is the version with air floating. It resolves 0.001/0.005 mm (metric) and has 7 µm perpendicularity with 1.8 µm repeatability.
- Icon commands make diameter and pitch measurements quick on the 518-244
- GO/±NG checks once tolerances are entered on the 518-244
- Part programs can be taught and replayed on the 518-244
- Manual drive, roller bearing guide, measuring force 1.5 ± 0.5 N on the 518-244
- Air floating fitted, battery life approx. 90 h, mass 29 kg
- AA x 4 alkaline/Ni-MH batteries, AC adapter available as option on the 518-244
For pricing, please contact our experts.
