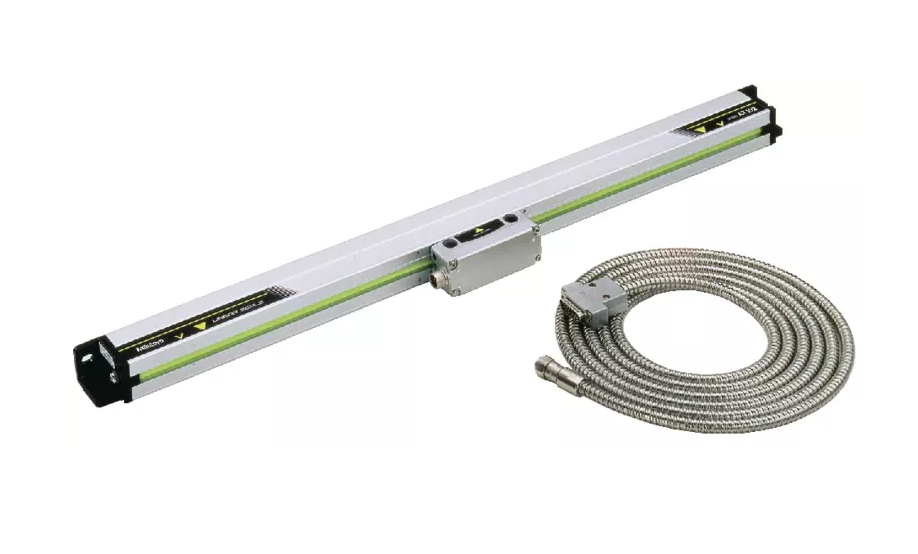

Mitutoyo 539-134-30 | AT103 Linear Scale | 1700 mm Effective Length, 5 m Cable
Part Number : 539-134-30
Part 539-134-30 is Mitutoyo's AT103-1700: an AT103 linear scale measuring over 1700 mm, with accuracy of (5+5L/1000) µm. At 5.3 kg, the AT103-1700 is supplied with a 5 m cable for connection to Mitutoyo equipment.
- Effective length 1700 mm; accuracy (5+5L/1000) µm
- Maximum speed 120 m/min
- IP53 dust and water protection
- Reference points every 50 mm
- Output: two 90° phase-shifted sinusoidal signals
- 5 m cable; mass 5.3 kg
Free UAE shipping available
For pricing, please contact our experts.
