Mitutoyo 539-139-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 2500 mm | Mass 7.3 kg

Name: Mitutoyo 539-139-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 2500 mm | Mass 7.3 kg
Brand: Mitutoyo
SKU: 539-139-30
Availability: InStock

Part Number : 539-139-30

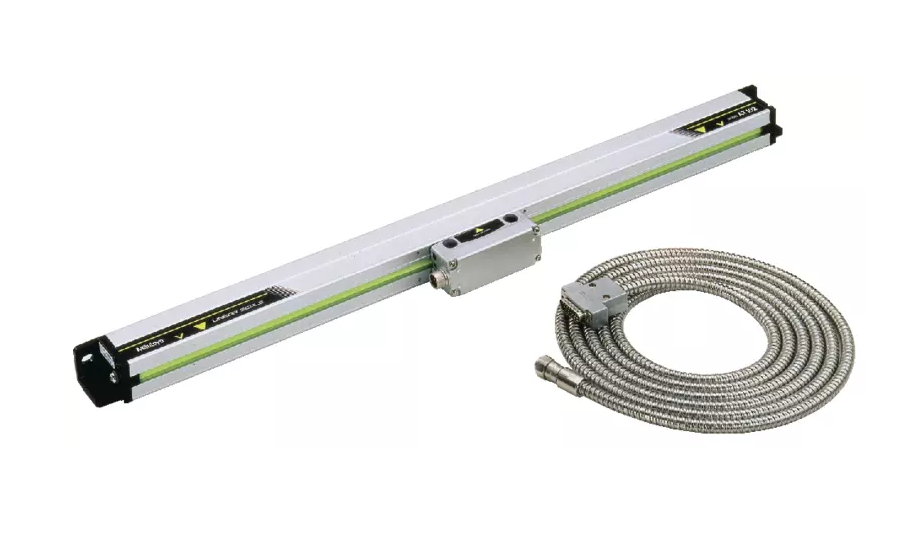

The Mitutoyo 539-139-30 is a high-precision linear scale designed for accurate measurement applications. It offers an effective measuring length of 2500 mm, making it suitable for medium to large-scale setups. The scale features a 7-meter armored signal cable, ensuring durability and flexibility in various environments. With a mass of 7.3 kg, it provides a solid and stable build for consistent performance. The scale operates with high accuracy and speed, delivering reliable measurements for demanding applications. It is compatible with Mitutoyo's digital readout systems, ensuring seamless integration into existing setups.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 7 m
MAX. SPEED	120 m/min.
Model Number	AT103-2500
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	7.3 kg

High Accuracy: Provides precision of (5 + 5L/1000) µm, suitable for precise linear measurements.
Effective Measuring Length: 2500 mm, ideal for medium to large machinery and setups.
Long Cable Length: 7-meter armored cable offers flexibility and durability for installation.
Sturdy Build: Weighs 7.3 kg, providing stability for consistent performance in demanding environments.
High-Speed Operation: Supports speeds up to 120 m/min for fast data acquisition.
Signal Compatibility: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo KA and KLD DRO systems.
