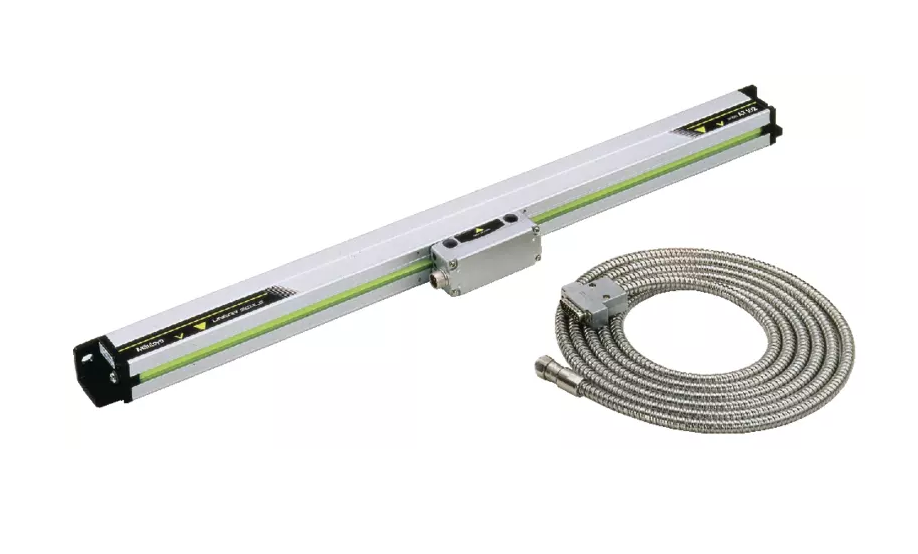

Mitutoyo 539-143-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 3250 mm | Mass 10.8 kg

Name: Mitutoyo 539-143-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 3250 mm | Mass 10.8 kg
Brand: Mitutoyo
SKU: 539-143-30
Availability: InStock

Part Number : 539-143-30

The Mitutoyo 539-143-30 is a high-precision linear scale designed for accurate measurement applications. It offers an effective measuring length of 3250 mm, making it suitable for medium to large-scale setups. The scale features a 10-meter armored signal cable, ensuring durability and flexibility in various environments. With a mass of 10.8 kg, it provides a solid and stable build for consistent performance. The scale operates with high accuracy and speed, delivering reliable measurements for demanding applications. It is compatible with Mitutoyo's digital readout systems, ensuring seamless integration into existing setups.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 10 m
MAX. SPEED	50 m/min.
Model Number	AT103-3250
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	10.8 kg

High Accuracy: (5 + 5L/1000) µm for lengths up to 3000 mm, and (5 + 8L/1000) µm for lengths from 3250 mm to 6000 mm.
Effective Length: 3250 mm, ideal for larger-scale applications.
Durable Design: IP53-rated protection against dust and water, with an armored cable for tough environments.
Flexible Installation: A 10-meter cable can be connected from either side of the detector head.
High-Speed Measurement: Supports up to 120 m/min measuring speed for fast operations.
Signal Output: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DROs.
