Mitutoyo 539-145-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 3750 mm | Mass 12 kg

Name: Mitutoyo 539-145-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 3750 mm | Mass 12 kg
Brand: Mitutoyo
SKU: 539-145-30
Availability: InStock

Part Number : 539-145-30

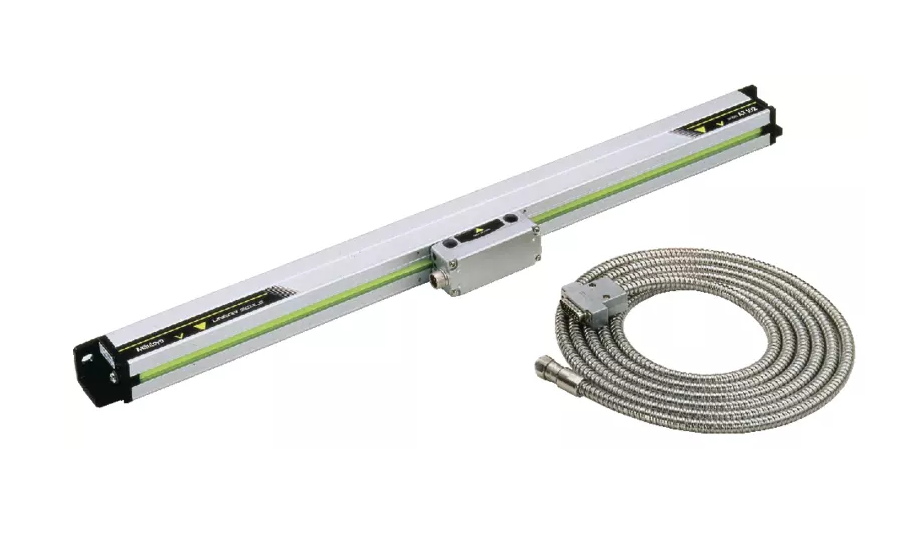

The Mitutoyo 539-145-30 Linear Scale AT103 is a high-precision device designed for accurate linear measurements in industrial environments. With an effective measuring length of 3750 mm and a 10-meter armored cable, it offers durability and flexible installation options. Its robust construction, weighing 12 kg, ensures stability even under heavy-duty conditions. The scale supports high-speed operation while maintaining excellent accuracy, making it suitable for large-scale machinery. It is IP53-rated for protection against dust and light water exposure. Compatible with Mitutoyo DRO systems, it integrates smoothly into existing setups.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 10 m
MAX. SPEED	50 m/min.
Model Number	AT103-3750
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	12 kg

Effective Measuring Length: 3750 mm, ideal for large-scale applications.
High Accuracy: (5 + 8L/1000) µm for extended lengths, ensuring precise measurements.
Durable Build: IP53-rated with armored 10 m cable for protection in harsh environments.
Flexible Installation: Cable can be connected from either side of the detector head.
High-Speed Capability: Supports measuring speeds up to 50 m/min.
Signal Compatibility: Outputs dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DROs.
