Mitutoyo 539-147-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 4250 mm | Mass 13.2 kg

Name: Mitutoyo 539-147-30 | Linear Scale AT103 | Cable Length 10 m | Effective Length 4250 mm | Mass 13.2 kg
Brand: Mitutoyo
SKU: 539-147-30
Availability: InStock

Part Number : 539-147-30

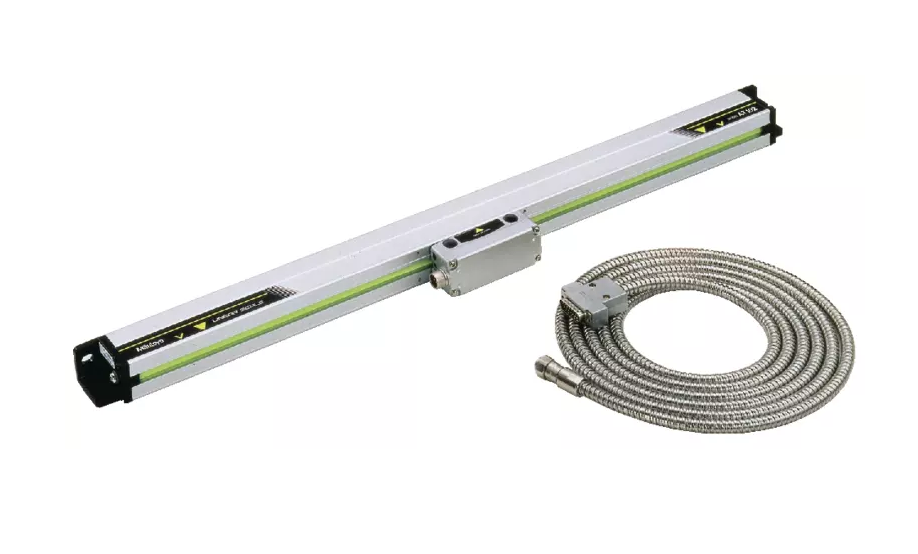

The Mitutoyo 539-147-30 Linear Scale AT103 is designed for high-precision measurement tasks in large-scale industrial settings. With an effective measuring length of 4250 mm, it enables accurate monitoring over extended distances. The unit includes a 10-meter armored cable that supports flexible and durable installation. Its 13.2 kg mass ensures mechanical stability and consistent performance during operation. The IP53-rated enclosure protects the scale from dust and light water exposure, making it suitable for demanding environments. It integrates seamlessly with Mitutoyo digital readout systems, offering reliable and efficient measurement capabilities.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 10 m
MAX. SPEED	50 m/min.
Model Number	AT103-4250
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Every 50 mm
Type	Linear Scale
Weight	13.2 kg

Effective Measuring Length: 4250 mm, ideal for extended-range measurement tasks.
High Accuracy: Maintains precision with (5 + 8L/1000) µm over long distances.
Durable Build: IP53-rated for dust and light water resistance, suited for industrial use.
Armored Cable: 10-meter cable allows flexible, secure installation.
Stable Construction: Weighs 13.2 kg for reliable, vibration-resistant performance.
Signal Output: Dual 90° phase-shifted sinusoidal signals compatible with Mitutoyo DRO systems.
