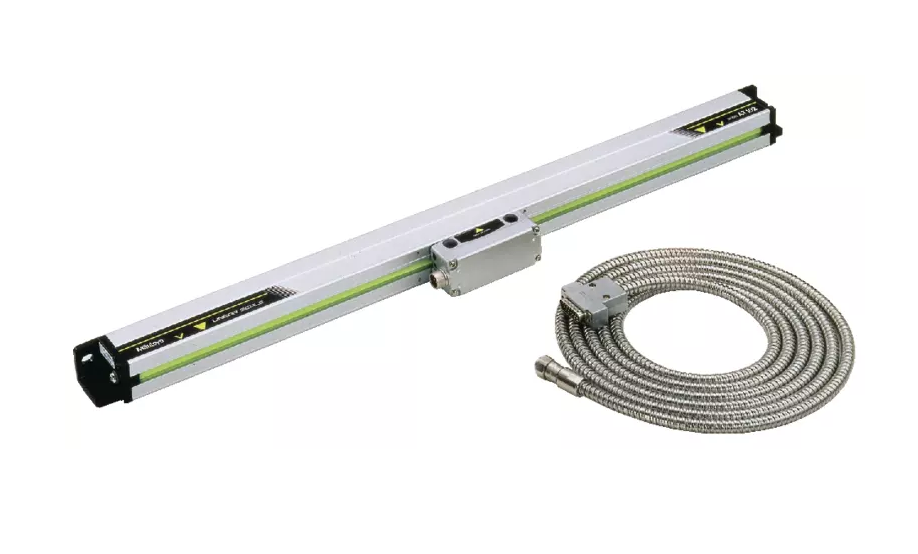

Mitutoyo 539-150-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5000 mm | Mass 15.8 kg

Name: Mitutoyo 539-150-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5000 mm | Mass 15.8 kg
Brand: Mitutoyo
SKU: 539-150-30
Availability: InStock

Part Number : 539-150-30

The Mitutoyo 539-150-30 Linear Scale AT103 is designed for precise measurements over long distances, making it ideal for large-scale industrial applications. With an effective measuring length of 5000 mm, it ensures accuracy over extended ranges. The 15-meter armored cable provides durability and flexibility for a variety of installation setups. Weighing 15.8 kg, it offers excellent mechanical stability, minimizing vibration during operation. The IP53-rated protection ensures reliable use in environments with dust and light moisture exposure. Fully compatible with Mitutoyo DRO systems, it delivers seamless integration and consistent, high-accuracy performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 15 m
MAX. SPEED	50 m/min.
Model Number	AT103-5000
Output	Waveform: Two 90° phased-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: 50 mm
Type	Linear Scale
Weight	15.8 kg

Effective Measuring Length: 5000 mm, perfect for large-scale industrial applications.
High Accuracy: Provides (5 + 8L/1000) µm precision for extended-range measurements.
Long Armored Cable: 15-meter cable offers durability and flexible installation.
Rugged Design: IP53-rated for protection against dust and moisture in harsh environments.
Stable Construction: Weighs 15.8 kg, ensuring stable operation and minimizing vibration.
Signal Output: Dual 90° phase-shifted sinusoidal signals compatible with Mitutoyo DRO systems.
