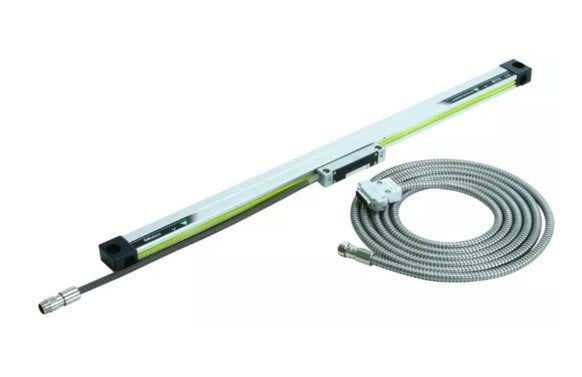

Mitutoyo 539-201-30 | Linear Scale AT113 | Model AT113-100 | Mass 0.9 kg
The Mitutoyo 539-201-30 Linear Scale, model AT113-100, is a high-precision measuring device designed for accurate linear displacement detection. It belongs to the AT113 series, known for reliability in industrial and laboratory environments. With a measuring range suitable for small-to-medium scale applications, it ensures consistent performance. This model is lightweight, with a mass of just 0.9 kg, allowing easy integration into machinery. It's ideal for CNC machines, inspection tools, and other precision positioning systems.
- Specifications
- Features
- Downloads
| Accuracy | Standard type (5+5L/1000) µm L = Effective range (mm) |
| Mass (main unit) | 0.9 kg |
| Model Number | AT113-100 |
| Type | Linear Scale |
- High Accuracy: Offers a standard accuracy of (5 + 5L/1000) µm, ensuring precise linear measurement.
- Compact Design: Slim spar-type body (22 mm × 35 mm) allows easy installation in tight spaces.
- Durable Build: Includes an armored stainless steel signal cable for enhanced durability and resistance to wear.
- Environmental Protection: IP53-rated for protection against dust and light water spray, suitable for industrial environments.
- System Compatibility: Fully compatible with Mitutoyo Digital Readout (DRO) systems for flexible integration.
