Mitutoyo 539-201-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 100 mm | Mass 0.9 kg

Name: Mitutoyo 539-201-40 | Linear Scale AT113 | Cable Length 3.5 m | Effective Length 100 mm | Mass 0.9 kg
Brand: Mitutoyo
SKU: 539-201-40
Availability: InStock

Part Number : 539-201-40

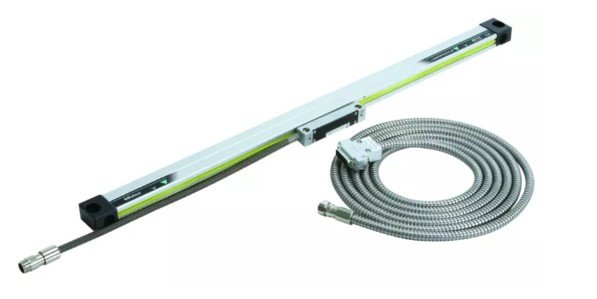

The Mitutoyo 539-201-40 Linear Scale (Model AT113) is a compact, high-precision measurement device designed for short-range displacement applications. It features an effective measuring length of 100 mm and a 3.5-meter armored signal cable for flexible installation. With a mass of only 0.9 kg, it's ideal for lightweight setups and limited-space environments. The scale provides excellent accuracy of (3 + 3L/1000) µm and supports high-speed operation up to 120 m/min. Its IP53 rating ensures protection against dust and water ingress, making it suitable for various industrial conditions.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	High-accuracy type (3+3L/1000) µm L = Effective range (mm)
Cable length	: 3.5 m
Length	Effective : 100 mm
Mass (main unit)	0.9 kg
MAX. SPEED	Drive : 120 m Or min
Model Number	AT113-100F
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	Dust/water protection level: IP53
Scale	50 mm
Type	Linear Scale

High Accuracy: Achieves a standard accuracy of (3 + 3L/1000) µm, where L is the effective measuring length in mm, ensuring precise measurements over its 100 mm effective range.
Resolution: Provides a signal period of 20 µm, allowing for high-resolution measurements suitable for fine-tolerance applications.
Slim Spar Design: Features a compact unit sectional dimension of 22 x 35 mm, ideal for installations with limited space.
e-motionsupply.com
Environmental Protection: Built with an IP53 rating, offering protection against dust and water ingress, ensuring reliable performance in various conditions.
High-Speed Response: Supports a maximum drive speed of 120 m/min, accommodating high-speed applications.
