Part Number : 543-351

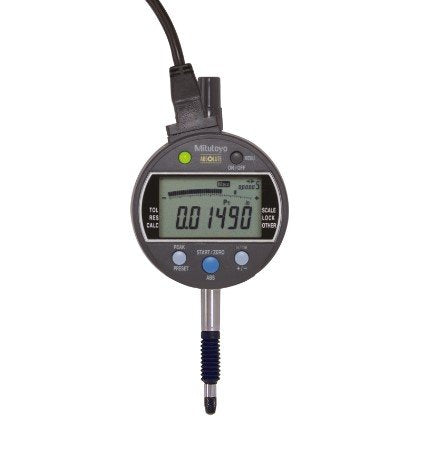

The Mitutoyo 543-351 Digital Indicator from Series 543 is a Signal ID-C model with a lug back, designed for precision measurement and seamless integration into data collection systems. With a compact 0.5-inch measuring range, it's ideal for detailed inspection tasks where accuracy is critical. The indicator delivers outstanding performance with a repeatability and accuracy of ±0.0001 inch, ensuring highly consistent results. The lug back plate provides flexible mounting options, making it suitable for various setups in quality control and production environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Digital step	0.00005 in/0.0001 in/0.0005 in or 0.001 mm/0.01 mm
Display	LCD, character height 8 mm
GO/+/-NG judgement	Yes
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
ON/OFF	Yes
Power Supply	5 - 24 V DC / 100mA (max)
Protection	IP54
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	285 g

Signal Output ID-C: Enables connection to SPC and data acquisition systems for real-time monitoring.
Lug Back Plate: Offers flexible and secure mounting to a variety of fixtures.
Exceptional Accuracy: ±0.0001 inch accuracy and repeatability for high-precision work.
Compact Measuring Range: 0.5-inch range perfect for fine and detailed measurements.
Durable and Precise: Built for long-term reliability in demanding applications.
Ideal for Inspection Lines: Perfect for integration in automated or manual quality control setups.
