Mitutoyo 543-351B-10 | Digital Indicator | Signal ID-C | Series 543 | Lug Back Plate | Repeatability 0.0001 inch | Accuracy ±0.0001 inch | Range 0.5 inch

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 543-351B-10

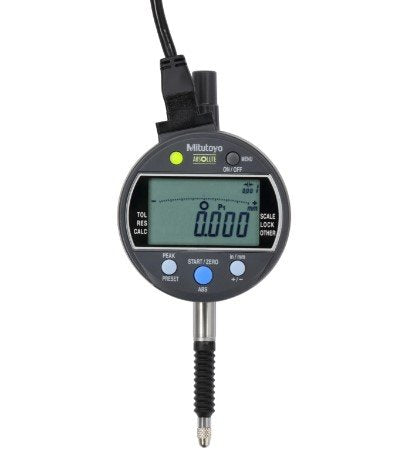

The Mitutoyo 543-351B-10 Digital Indicator from the Signal ID-C Series 543 is designed for high-precision measurement tasks. It features a 0.5-inch measuring range and offers exceptional repeatability of 0.0001 inch, making it ideal for applications requiring consistent accuracy. With an accuracy of ±0.0001 inch, it ensures dependable and precise readings every time. The unit is equipped with a lug back plate for flexible and secure mounting options. Its digital display allows for easy reading of measurements, enhancing efficiency in inspection and quality control settings. Built with Mitutoyo's trusted craftsmanship, this indicator is a reliable tool for demanding environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, ABS composition error, overflow error, setting error
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Digimatic data output	Yes
Digital step	0.00005 in/0.0001 in/0.0005 in Or 0.001 mm/0.01 mm
Display	LCD, character height 8 mm
GO/+/-NG judgement	Yes
Hysteresis	0.0001 Inch Or 0.002 mm
Inch-Metric	Inch/Metric
Lock function	Yes
Max. permissible error	E MPE: +/-0.0001 In Or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-C112JMXB2
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP54
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch Or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	285 g

Measuring Range: 0.5 inch (12.7 mm) for versatile precision applications
Accuracy: ±0.0001 inch ensures highly reliable measurements
Repeatability: Exceptional 0.0001-inch repeatability for consistent results
Display: Easy-to-read digital LCD for quick data reading
Mounting: Lug back plate for secure and flexible installation
Build Quality: Durable construction with Mitutoyo’s trusted engineering

DOWNLOAD CATALOG
