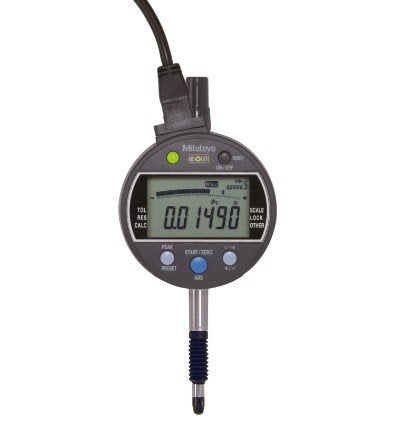

Mitutoyo 543-351B | Digital Indicator | Signal ID-C | Series 543 | Flat Back | Repeatability 0.0001 inch | Accuracy ±0.0001 inch | Range 0.5 inch
The Mitutoyo 543-351B Digital Indicator from Series 543 is a Signal ID-C model designed for high-accuracy measurement with data output functionality. Featuring a flat back design, it allows secure and stable mounting on a variety of fixtures. The indicator offers a measuring range of 0.5 inch, making it ideal for precision inspection tasks. With an exceptional repeatability and accuracy of ±0.0001 inch, it delivers consistent and reliable results. Engineered for integration with digital systems, it's perfect for quality control and automated measurement setups.
- Specifications
- Features
- Downloads
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Analog/Digital | Digital |
| Calculation function | Yes |
| Contact point | Carbide Ball |
| Counting direction switchable | Yes |
| Digital step | 0.00005 in/0.0001 in/0.0005 in or 0.001 mm/0.01 mm |
| Display | LCD, character height 8 mm |
| GO/+/-NG judgement | Yes |
| Hysteresis | 0.0001 Inch or 0.002 mm |
| Inch-Metric | Inch/Metric |
| Lock function | Yes |
| Max. permissible error | E MPE: +/-0.0001 in or 0.003 mm |
| Max. Response Speed | Unlimited |
| Measuring Force | ¢°¤2.5 N |
| ON/OFF | Yes |
| Power Supply | 5 - 24 V DC / 100mA (max) |
| Protection | IP54 |
| Range | 0.5 Inch or 12.7 mm |
| Repeatability | 0.0001 Inch or 0.002 mm |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Series | 543 |
| Stem Dia | 8 mm |
| Thread type | M2.5x0.45 |
| Type | Digital Indicator |
| Type | EN ISO Standard |
| Weight | 285 g |
- Signal Output ID-C: Supports external data collection for digital monitoring and analysis.
- Flat Back Plate: Ensures stable and secure mounting on inspection fixtures.
- Ultra-High Precision: ±0.0001 inch accuracy and 0.0001 inch repeatability.
- Compact Measuring Range: 0.5-inch range ideal for fine, detailed inspections.
- Industrial-Grade Build: Designed for demanding inspection environments.
- Perfect for Automation: Ideal for use in SPC systems and precision quality control processes.
Related Products

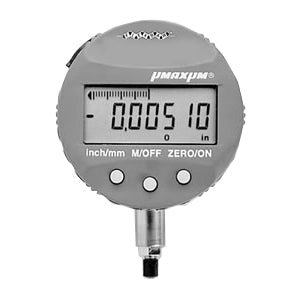

Flexbar 15352 | Micro-Maxum Electronic Indicator | 11.7 mm Stem
Flexbar 15352 | Micro-Maxum Electronic Indicator | 11.7 mm Stem
Flexbar 15351 | Micro-Maxum Electronic Indicator | .375 in Stem, 1.5 in Long
Flexbar 15351 | Micro-Maxum Electronic Indicator | .375 in Stem, 1.5 in Long

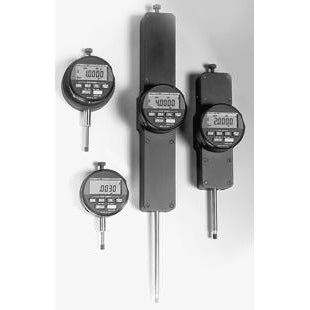

Flexbar 15839 | Digitmaster Logic Basic Indicator | 2 in/50 mm, .00005 in
Flexbar 15839 | Digitmaster Logic Basic Indicator | 2 in/50 mm, .00005 in

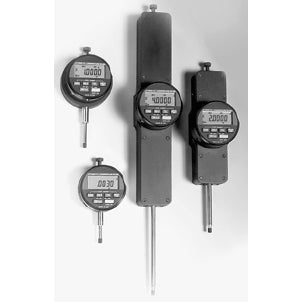

Flexbar 15833 | Logic Basic Indicator | .250 in
Flexbar 15833 | Logic Basic Indicator | .250 in
Flexbar 15861 | Wireless Bluetooth Indicator | 1 in size, .0005 in/0.01 mm
Flexbar 15861 | Wireless Bluetooth Indicator | 1 in size, .0005 in/0.01 mm

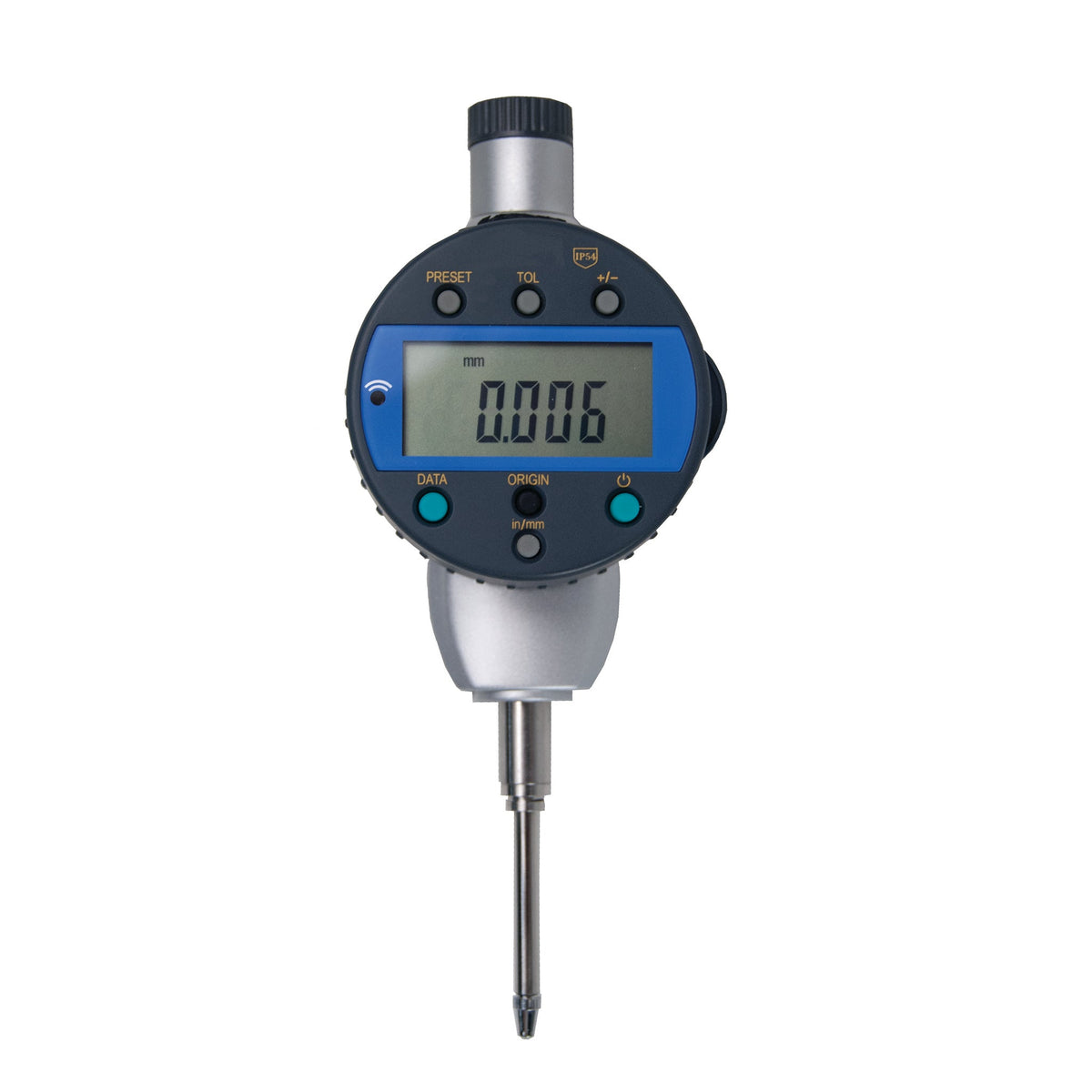

Flexbar 15836 | Wireless Bluetooth Indicator | 1 in size, .00005 in/0.001 mm
Flexbar 15836 | Wireless Bluetooth Indicator | 1 in size, .00005 in/0.001 mm
Flexbar 15835 | Wireless Bluetooth Indicator | 1/2 in size, .00005 in/0.001 mm
Flexbar 15835 | Wireless Bluetooth Indicator | 1/2 in size, .00005 in/0.001 mm

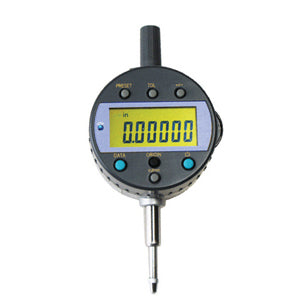

Flexbar 15860 | Wireless Bluetooth Indicator | 1/2 in size, .0005 in/0.01 mm
