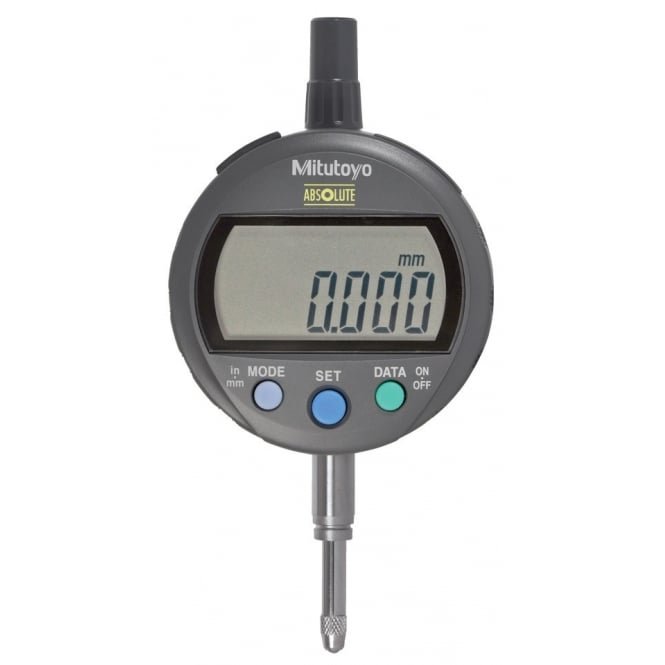

Mitutoyo 543-396B ABSOLUTE Digimatic Indicator, Low Measuring Force Type ID-C, 12.7mm / .5"

Name: Mitutoyo 543-396B ABSOLUTE Digimatic Indicator, Low Measuring Force Type ID-C, 12.7mm / .5"
Brand: Mitutoyo
SKU: 543-396B
Availability: InStock

Part Number : 543-396B

A Mitutoyo digital indicator featuring a low measuring force more suited to measuring softer, or more delicate, components than those normally encountered. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement. SPC data output.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.003mm / .0001 inch
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	0.4N - 0.7N
Measuring Units	Millimetre / Inch
Range	12.7mm / .5 inch
Resolution	0.001mm / .00005 inch
SKU	543-396B
Stem Dia	8mm
Type	Plunger

This is a multifunction indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-C offers you the following benefits:

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
GO/±NG judgement is performed by setting the upper and lower tolerances.
You can make simple calculations by a user-definable factor using the formula Ax (‚x‘ is spindle displacement).
Large character height of 11mm provides good readability.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
