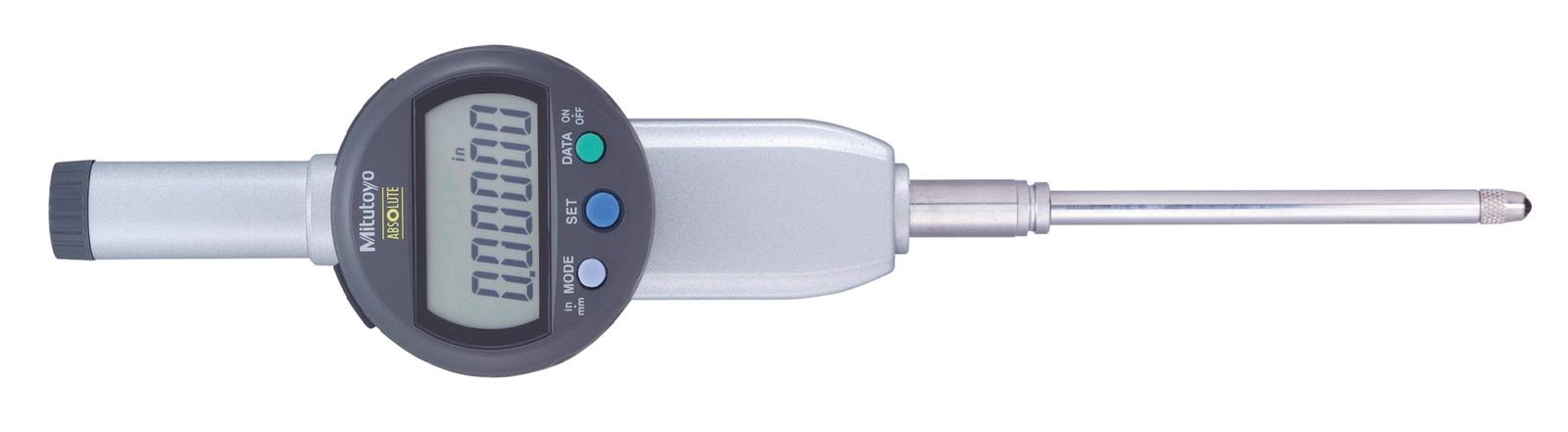

Mitutoyo 543-491b ABSOLUTE Digimatic Indicator ID-C 50.8mm / 2"

Name: Mitutoyo 543-491b ABSOLUTE Digimatic Indicator ID-C 50.8mm / 2"
Brand: Mitutoyo
SKU: 543-491b
Availability: InStock

Part Number : 543-491b

A Mitutoyo digital indicator of similar size to a Series 2 type dial indicator. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement. SPC data output.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.005mm
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	2.3N or less
Measuring Units	Millimetre / Inch
Range	50mm / 2 inch
Resolution	0.001mm / .00005 inch
SKU	543-491b
Type	Plunger

Employing the ABSOLUTE Linear Encoder, the ID-CX indicator always displays the absolute position of the plunger from the origin at power-on.
• Thanks to the ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors.
• Tolerance-judging measurement is available by setting upper and lower limit values. The tolerance judgement result can be enlarged.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
