Part Number : 543-502

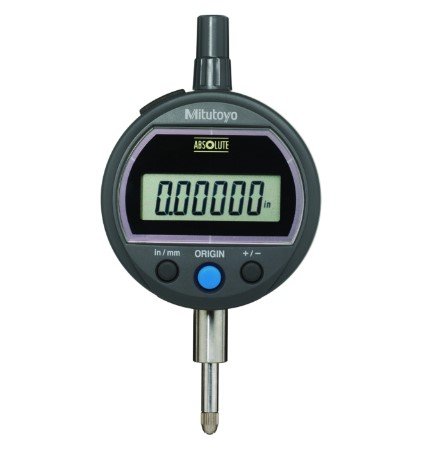

The Mitutoyo 543-502 Digital Solar Indicator from Series 543 (ID-SS type) is a precision measuring tool designed for high-accuracy applications. It features a compact ANSI/AGD design with a measuring range of 0.5 inch and a fine digital step of 0.0005 inch. With a hysteresis of just 0.0001 inch, it ensures consistent and repeatable measurements. This indicator is solar-powered, requiring only standard indoor lighting for continuous operation, eliminating the need for battery changes. It has a stem diameter of 9.52 mm and weighs just 140 g, making it lightweight and easy to integrate into various setups. Ideal for precision measurement tasks in both lab and industrial environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	Solar cell usable from 40 Lux illumination
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Series	543
Stem Dia	9.52 mm
Type	ASME/ANSI/AGD Standard
Type	Digital Solar Indicator
Weight	140 g

Measurement Range: 0.5 inch – ideal for precise measurements on smaller workpieces
Resolution: 0.0005 inch – ensures fine, detailed readings
Hysteresis: 0.0001 inch – for minimal measurement error and high repeatability
Power Source: Solar-powered – operates under normal lighting, eliminating battery changes
Stem Diameter: 9.52 mm – compact design for versatile use in various setups
Weight: 140 g – lightweight and easy to handle for comfortable operation
