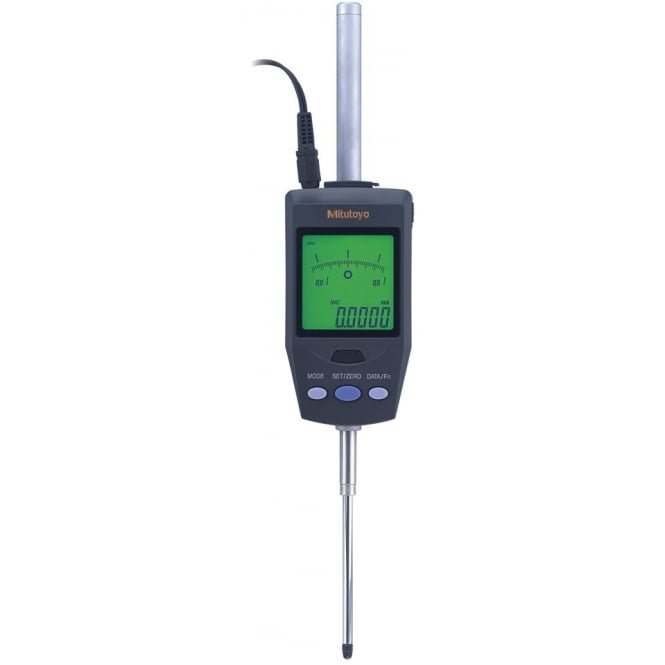

Mitutoyo 543-564E | High Resolution Digital Indicator ID-H | 60.9 mm / 2.4 in

Name: Mitutoyo 543-564E | High Resolution Digital Indicator ID-H | 60.9 mm / 2.4 in
Brand: Mitutoyo
SKU: 543-564E
Availability: InStock

Part Number : 543-564E

Mitutoyo 543-564E is a High Resolution Digital Indicator ID-H offering 60.9 mm / 2.4 in of travel. It is rated at ±0.0025 mm accuracy.

Back-lit screen, mains powered
Analogue bar scale and switchable extra-high resolution
Colour-coded tolerance judgement
Max/Min data hold and runout measurement
Function lock and Digimatic data output
Measuring force of 2.0 N or less

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	543-564E
Brand	Mitutoyo
Range	60.9 mm / 2.4 in
Accuracy (MPE)	±0.0025 mm
Measuring Force	2.0 N or less
Stem Diameter	9.52 mm (3/8 in)
Functions	Digimatic data output
Indicator Type	Plunger

• This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator.
• Take advantage of its high accuracy backed up by 0.5 μm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analogue bar display.
• Functionality meets the needs of diverse measurement applications.
• Measuring maximum value, minimum value and runout (difference between a maximum and a minimum value).
• GO/NO-GO judgement function: If a judgement result shows an out of tolerance condition the display backlighting changes from green to red.
• With the optional remote controller, operations such as zero-setting and presetting can be made without touching the indicator body, thereby avoiding disturbance to the set-up.
• An advanced, remote control system can be implemented with the built-in RS-232 interface and a PC.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.
