Part Number : 543-570

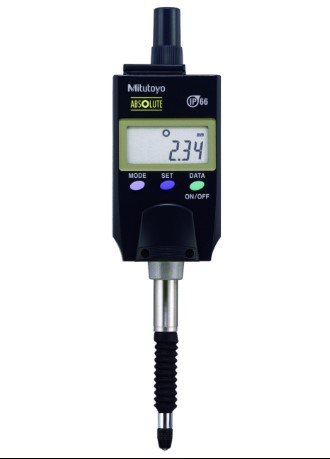

The Mitutoyo 543-570 Digital Indicator from the ID-N Series 543 is a reliable tool for general-purpose precision measurement. It features a measuring range of 0 to 12.7 mm, making it suitable for a wide variety of applications. With a resolution of 0.01 mm, it delivers clear and consistent readings. The indicator offers an accuracy of ±0.02 mm, providing dependable results for standard inspection tasks. Its easy-to-read digital LCD display enhances usability and workflow efficiency. Built with Mitutoyo’s trusted quality, this indicator is a solid choice for both shop floor and lab environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Analog/Digital	Digital
Battery Life	Approx. 7000 hours
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height: 6.2 mm
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Max. permissible error	0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-N1012
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP66
Range	12.7 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	130 g

Measuring Range: 0 to 12.7 mm for versatile measurement tasks
Resolution: 0.01 mm for clear, precise readouts
Accuracy: ±0.02 mm, suitable for standard precision requirements
Display: Digital LCD screen for easy and quick readings
Series: Part of the ID-N Series 543, known for reliability
Build: Durable and user-friendly design for shop and inspection use
