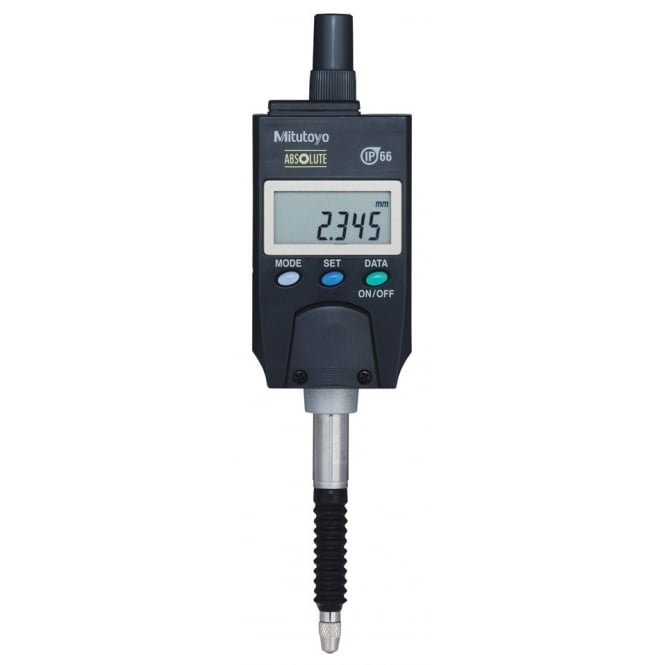

Mitutoyo 543-575 ABSOLUTE Digimatic Slim Body Indicator ID-N 12.7mm

Name: Mitutoyo 543-575 ABSOLUTE Digimatic Slim Body Indicator ID-N 12.7mm
Brand: Mitutoyo
SKU: 543-575
Availability: InStock

Part Number : 543-575

A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	0.003mm
Analog/Digital	Digital
Brand	Mitutoyo
Data Output	Yes
Measuring Force	2.5N
Measuring Units	Millimetre
Range	12.7mm / .5 inch
Resolution	0.01mm / 0.001mm
SKU	543-575
Stem Dia	8mm
Type	Plunger

This is a slim back-plunger model that is highly resilient and robust.
The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits:

It slim body design is ideal for multi-point measurements.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid.
Switchable display orientation gives you more mounting options.
You can perform GO/±NG judgement by setting the upper and lower tolerances.

Mitutoyo 543-575 ABSOLUTE Digimatic Slim Body Indicator ID-N 12.7mm
