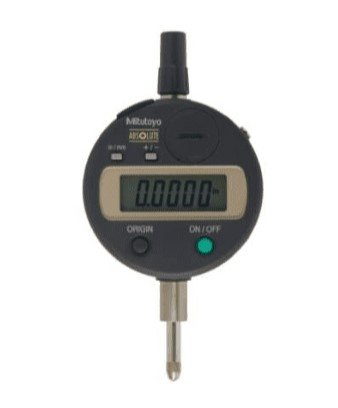

Mitutoyo 543-682 | Absolute Digimatic Indicator ID-S | Resolution 0.0005 inch or 0.01 mm | Range 0.5 inch or 12.7 mm | Accuracy 0.0008 inch
A top-notch measuring device, the Mitutoyo 543-682 Digimatic Digital Indicator – ID-S1012M / 7007 is made to deliver precise and accurate measurements in a range of applications. The wide LCD display on this digital indicator makes it simple to read measurements. Accurate and trustworthy readings are guaranteed by its 0–12.7 mm measurement range and 0.001 mm resolution. Additionally, the indicator has a data output feature that makes it simple to transfer measurement data to a computer or data-gathering system. The Mitutoyo 543-682 Digimatic Digital Indicator is a dependable instrument for experts in fields like manufacturing, engineering, and quality control because of its robust design and cutting-edge capabilities.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.001mm / +/-0.00005inch |
Battery Life | 20,000 hours |
Battery | SR44 |
Display | LCD |
Functions | Zero-setting, inch/mm conversion, data hold, ABS/INC measurement |
Graduation | 0.01mm |
Material | Stainless steel |
Measurement range | 0-12.7mm / 0-0.5inch |
Measuring Force | 2N |
Protection | IP42 (dust and water resistant) |
Repeatability | 0.001mm / 0.00005inch |
Resolution | 0.001mm / 0.00005inch |
Type | Absolute Digimatic Indicator ID-S |
Weight | 210g |
- When the indicator is activated, Mitutoyo's exclusive ABSOLUTE sensor instantly returns to the previous origin point. Quick-start operation is made possible by this, and multipoint measurement benefits greatly from it.
- measurement device powered by solar energy. Operational at 40 lux lighting.
- as little as dial indicators from Series 2.
- SPC output was given.
- Functionality is enhanced by two sizable buttons (three on inch/mm variants).
