Mitutoyo 543-783-10 | Digital Indicator ID-S | Series 543 | Type ASME/ANSI | Digital Step 0.0005 Inch | Hysteresis 0.001 Inch | Range 0.5 Inch | Diameter 9.52 mm | Weight 150 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-783-10

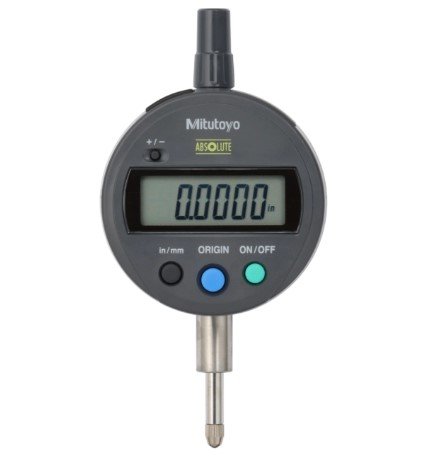

The Mitutoyo 543-783-10 Digital Indicator ID-S Series 543 meets ASME/ANSI standards, offering precise measurements with a digital step of 0.0005 inch and a hysteresis of 0.001 inch. It provides a 0.5-inch measurement range, ideal for detailed and small-scale tasks. With a 9.52 mm diameter, it fits well into tight spaces for versatile usage. Weighing 150 g, it balances portability with stability for easy handling. The digital display ensures quick, clear, and accurate readings, enhancing measurement efficiency. Built to last, this indicator is designed for reliable performance in industrial and precision applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0005 Inch or 0.01 mm
Display	LCD, character height 9 mm
Hysteresis	0.001 Inch or 0.02 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.001 Inch or 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5"/12.7 mm
Repeatability	0.0005 Inch or 0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	ID-S1012EX2
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	150 g

ASME/ANSI Compliance: Meets ASME/ANSI standards for accuracy and performance in professional settings.
Precision Measurements: Digital step of 0.0005 inch and hysteresis of 0.001 inch for highly precise readings.
Measuring Range: 0.5-inch range, perfect for fine and detailed measurement tasks.
Compact Design: 9.52 mm diameter for use in tight or confined spaces.
Lightweight: Weighs 150 g, offering easy portability and comfortable handling.
Clear Digital Display: Provides quick and clear digital readings, reducing measurement errors and increasing efficiency.
