Part Number : 543-790B-10

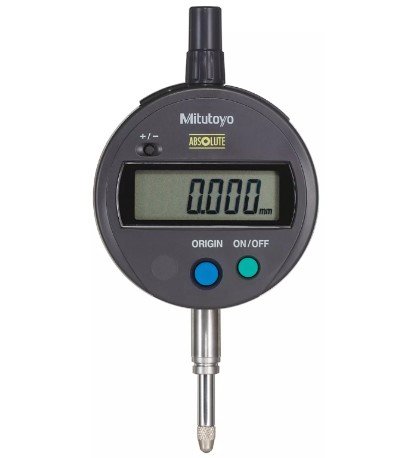

The Mitutoyo 543-790B-10 Digital Indicator from Series 543 (ID-S) is a high-precision tool designed for accurate and repeatable measurements. It offers a measuring range of 12.7 mm, making it ideal for detailed inspection tasks. The indicator features a fine digital step resolution of 0.001 mm, ensuring exceptional accuracy. With a hysteresis of just 0.002 mm, it maintains consistent performance even under demanding conditions. The 8 mm stem diameter allows compatibility with standard indicator holders, making setup straightforward. Weighing 140 g, this indicator is lightweight and easy to handle, providing comfort and control during use.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.002 mm
Inch-Metric	Metric
Max. permissible error	E MPE: 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S112XB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	140 g

Measurement Range: 12.7 mm – suitable for a variety of precise measurement tasks
Resolution: 0.001 mm – offers extremely fine and accurate digital readings
Hysteresis: 0.002 mm – ensures stable, repeatable measurements with minimal error
Stem Diameter: 8 mm – compatible with standard indicator holders for easy integration
Weight: 140 g – lightweight for easy handling and stability during measurements
Series 543 Design: Durable and compact, designed for consistent performance in workshops and inspection environments
