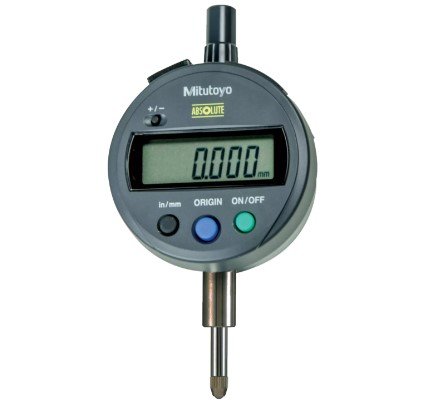

Mitutoyo 543-792-10 | Digital Indicator ID-S | Series 543 | Type ANSI/AGD | Digital Step 0.00005 Inch | Hysteresis 0.0001 Inch | Range 0.5 Inch | Diameter 9.52 mm | Weight 150 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-792-10

The Mitutoyo 543-792-10 Digital Indicator ID-S Series 543 meets ANSI/AGD standards, providing exceptional precision with a digital step of 0.00005 inch and hysteresis of 0.0001 inch. With a 0.5-inch measuring range, it is ideal for detailed and small-scale measurements. The 9.52 mm diameter allows for use in tight or restricted spaces. Weighing 150 g, it offers a good balance of portability and stability. The digital display ensures clear, accurate readings for improved efficiency. Designed for durability, it is reliable for use in both industrial and precision measurement environments.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00005 Inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S112EX2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	150 g

ANSI/AGD Compliance: Meets ANSI/AGD standards for accurate and reliable performance.
Exceptional Precision: Digital step of 0.00005 inch and hysteresis of 0.0001 inch for highly precise measurements.
Measuring Range: 0.5-inch range, ideal for small, detailed measurements in various applications.
Compact Design: 9.52 mm diameter, perfect for use in tight spaces and precision tasks.
Lightweight: Weighs 150 g, offering easy portability and comfortable handling.
Clear Digital Display: Provides fast and clear digital readouts for improved measurement accuracy and efficiency.

DOWNLOAD CATALOG
