Part Number : 543-793-10

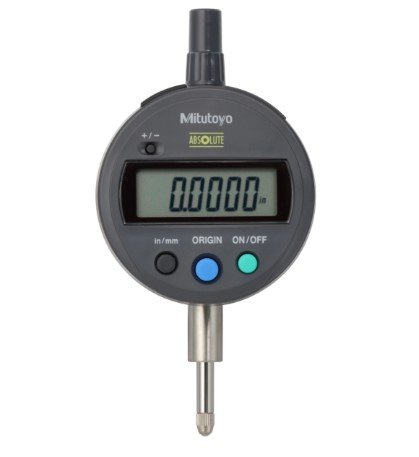

The Mitutoyo 543-793-10 Digital Indicator ID-S Series 543 meets ASME/ANSI standards, delivering precise measurements with a digital step of 0.0001 inch and hysteresis of 0.0001 inch. It offers a 0.5-inch measuring range, ideal for high-accuracy tasks. With a compact 9.52 mm diameter, it fits easily into tight spaces for versatile use. Weighing 150 g, it combines portability with stability for smooth handling. The digital display ensures fast, clear, and accurate readings, minimizing errors. Designed for industrial and precision applications, it guarantees reliable and consistent performance.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Carbide Ball
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Digimatic data output	Yes
Digital step	0.0001 Inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S112TX2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 inch or 12.7 mm
Repeatability	0.0001 Imnch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	150 g

ASME/ANSI Compliance: Adheres to ASME/ANSI standards for professional-grade accuracy.
High Precision: Digital step of 0.0001 inch and hysteresis of 0.0001 inch for precise and reliable measurements.
Measuring Range: 0.5-inch range, suitable for small, detailed measurement tasks.
Compact Design: 9.52 mm diameter, perfect for use in tight or confined spaces.
Lightweight: Weighs 150 g, offering ease of handling and portability.
Clear Digital Display: Provides quick and easy-to-read measurement results for enhanced efficiency.
