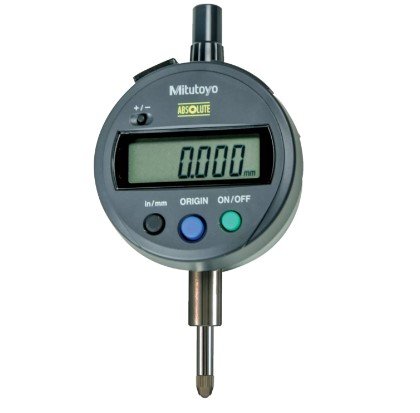

Mitutoyo 543-793B-10 | Digital Indicator ID-S | Series 543 | Type ASME/ANSI | Digital Step 0.0001 Inch | Hysteresis 0.0001 Inch | Range 0.5 Inch | Diameter 9.52 mm | Weight 140 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-793B-10

The Mitutoyo 543-793B-10 Digital Indicator ID-S Series 543 complies with ASME/ANSI standards, providing high-precision measurements with a digital step of 0.0001 inch and hysteresis of 0.0001 inch. It features a 0.5-inch measuring range, ideal for accurate, small-scale measurement tasks. With a 9.52 mm diameter, it can be used effectively in confined spaces. Weighing just 140 g, it offers excellent portability and ease of handling. The digital display ensures fast, clear readings for enhanced efficiency. Built for durability, it guarantees reliable performance in industrial and precision applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.0001 inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 Inch or 0.002 mm
Inch-Metric	Inch/Metric
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
Model Number	ID-S112TXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP42
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	9.52 mm
Thread type	No.4-48UNF
Type	ASME/ANSI/AGD Standard
Type	Digital Indicator
Weight	140 g

ASME/ANSI Compliance: Conforms to ASME/ANSI standards, ensuring precision and reliability.
Exceptional Precision: Digital step of 0.0001 inch and hysteresis of 0.0001 inch for highly accurate measurements.
Measuring Range: 0.5-inch range, perfect for small, detailed measurement tasks.
Compact Size: 9.52 mm diameter, making it suitable for use in tight spaces.
Lightweight: Weighs only 140 g, offering easy handling and portability.
Clear Digital Display: Provides quick, accurate digital readouts for enhanced measurement efficiency.

DOWNLOAD CATALOG
