Part Number : 543-795B-10

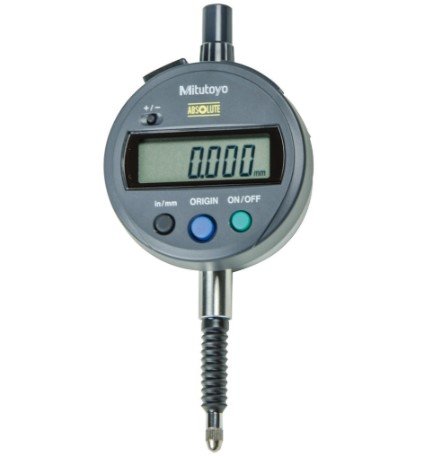

The Mitutoyo 543-795B-10 Digital Indicator ID-S Series 543 delivers exceptional accuracy with a digital step of 0.00005 inch and a hysteresis of 0.0001 inch. Its 0.5-inch measurement range makes it suitable for a variety of precision tasks. The compact 8 mm diameter allows for easy use in confined spaces. Weighing just 140 g, it is lightweight and comfortable to handle. This indicator ensures reliable and consistent readings for high-quality measurements. Built for industrial environments, it combines durability with precision for a wide range of applications.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, sensor error, ABS data composition error
Analog/Digital	Digital
Battery Life	Approx. 18000 hours (0.001 mm type), Approx. 20000 hours (0.01 mm type)
Contact point	Carbide Ball
Digimatic data output	Yes
Digital step	0.00005 Inch or 0.001 mm
Display	LCD, character height 9 mm
Hysteresis	0.0001 inch or 0.002 mm
Max. permissible error	E MPE: +/-0.0001 Inch or 0.003 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤2.5 N
Model Number	ID-S112PMXB2
ON/OFF	Yes
Power Supply	1 battery SR44
Protection	IP53
Range	0.5 Inch or 12.7 mm
Repeatability	0.0001 Inch or 0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	140 g

High Precision: Digital step of 0.00005 inch and hysteresis of 0.0001 inch for superior accuracy.
Measuring Range: Offers a 0.5-inch measuring range, ideal for small, detailed measurements.
Compact Design: Small 8 mm diameter, perfect for use in tight or restricted spaces.
Lightweight: Weighs only 140 g, making it easy to handle and maneuver.
Reliable Display: Clear digital readout for quick, precise measurement results.
Durable: Designed for long-lasting performance in industrial and precision applications.
