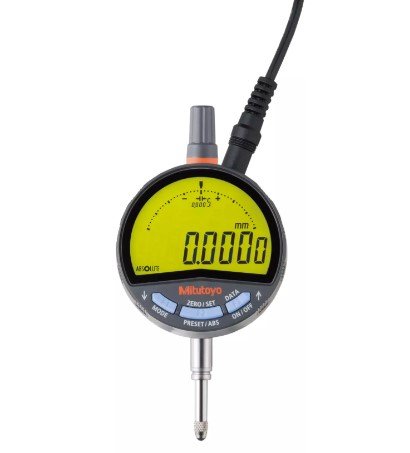

Mitutoyo 543-855B-D | Digital Indicator ID-F | Flat Back Plate | Series 543 | Resolution 0.0005 mm | Repeatability 0.002 mm | Range 12.7 mm

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 543-855B-D

The Mitutoyo 543-855B-D is a precise digital indicator from the ID-F Series 543, designed for reliable, high-resolution measurements. It features a flat back plate for stable and secure mounting in various setups. With a measuring range of 12.7 mm, it covers a wide range of standard inspection tasks. Its fine resolution of 0.0005 mm ensures clear and detailed readings. The indicator offers a repeatability of 0.002 mm, providing consistent results across repeated measurements. Built with Mitutoyo's quality engineering, it's ideal for accurate, everyday measurement needs.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Calculation function	Yes
Contact point	Carbide Ball
Counting direction switchable	Yes
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.0005 mm/0.001 mm/0.01 mm
Display	LCD with red/green backlight, character height 11 mm
GO/+/-NG judgement	Yes
Hysteresis	0.002 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.0025 mm
Max. Response Speed	Unlimited
Measuring Force	¢°¤1.5 N
ON/OFF	Yes
Power Supply	AC adapter 5,9V DC, 2A
Protection	IP30
Range	12.7 mm
Repeatability	0.002 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M 2.5 x 0.45 mm
Type	Digital Indicator
Weight	170 g

Measuring Range: 12.7 mm for standard precision applications
Resolution: 0.0005 mm for high-definition measurement output
Repeatability: 0.002 mm for dependable repeat measurements
Mounting: Flat back plate for stable, fixed installations
Display: Clear digital LCD screen for easy reading
Series: Part of the ID-F Series 543, balancing precision and usability

DOWNLOAD CATALOG
