Mitutoyo 547-217A | Digital Depth Gauge | With 63.5mm Base | Series 547 | Resolution 0.0005 inch | Accuracy ± 0.001 inch | Range 0 to 8 inch

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 547-217A

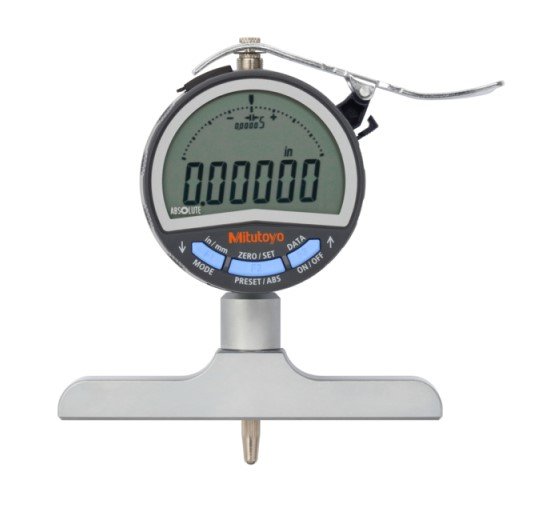

The Mitutoyo 547-217A Digital Depth Gauge features a 63.5mm base for stable and accurate depth measurements. It offers a measurement range from 0 to 8 inches with a resolution of 0.0005 inch. The tool provides an accuracy of ±0.001 inch, ensuring reliable results. Its digital display allows for quick and easy reading of measurements. Part of Mitutoyo’s Series 547, the depth gauge is designed for high precision and durability. Ideal for various industrial applications, it delivers excellent performance in measuring depths with ease and accuracy.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 0.002in ot +/- 20 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 7000 hours
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.0005in or 0.01 mm
Flatness	0.0002in or 5 µm
GO/+/-NG judgement	Yes
Inch-Metric	Inch/Metric
Lock function	Yes
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Range	0 - 8 Inch
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	0.5 mm
Thread type	# 4-48UNF
Type	Digital Depth Gauge
Weight	280 g
ZERO/ABS	Yes

63.5mm Base: Provides stability for accurate and consistent depth measurements.
Measurement Range: 0 to 8 inches for versatile depth measurement applications.
Resolution: 0.0005 inch for precise and detailed readings.
Accuracy: ±0.001 inch for reliable and consistent performance.
Digital Display: Easy-to-read digital output for quick and efficient measurements.
Mitutoyo Series 547: Known for high durability, precision, and performance in industrial settings.

DOWNLOAD CATALOG
