Mitutoyo 547-251A | Digital Depth Gauge | Series 547 | Digital Step 0.001 mm | Stroke 12.7 mm | Accuracy ± 5 µm | Weight 285 g

Client Production

Dedicated Support

Genuine Products

Client Production

Dedicated Support

Genuine Products

Part Number : 547-251A

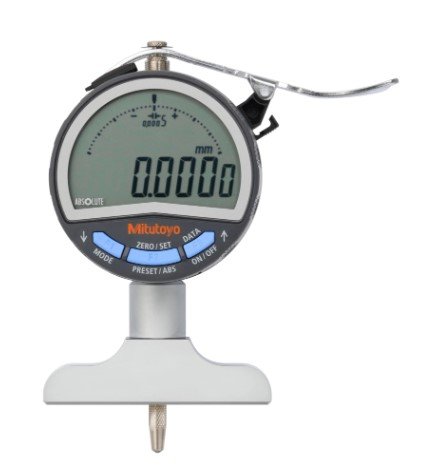

The Mitutoyo 547-251A Digital Depth Gauge (Series 547) offers precise digital readings with a step of 0.001 mm. It features a 12.7 mm stroke, ideal for measuring various depths accurately. With an impressive accuracy of ± 5 µm, it ensures reliable and precise results. The digital display makes measurements clear and easy to read. Weighing 285 g, it is lightweight and easy to handle. Perfect for professionals who require high-precision depth measurement in quality control and inspection tasks.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/- 5 µm
Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Base	2 µm
Battery Life	Approx. 7000 hours
Calculation function	Yes
Contact point	Carbide ball
Data hold function	Yes
Digital step	0.001 mm
GO/+/-NG judgement	Yes
Inch-Metric	Metric
Lock function	Yes
Max/Min	Range : Yes
Measuring Force	¢°¤ 1.5 N
ON/OFF	Yes
Power Supply	1 battery CR2032 (3V)
PRESET	Yes
Scale	Capacitance type ABSOLUTE linear encoder
Series	547
Stroke	12.7 mm
Thread type	M2.5x0.45
Type	Digital Depth Gauge
Weight	285 g
ZERO/ABS	Yes

Precise Digital Readings: Provides highly accurate digital measurements with a step of 0.001 mm.
Stroke: 12.7 mm stroke for versatile depth measurements in various applications.
High Accuracy: Offers exceptional accuracy of ± 5 µm for precise results.
Clear Digital Display: The digital display provides easy-to-read measurements for convenience.
Lightweight: Weighs just 285 g, ensuring easy handling and portability.
Ideal for Professionals: Perfect for quality control, inspections, and precision depth measurement tasks.
