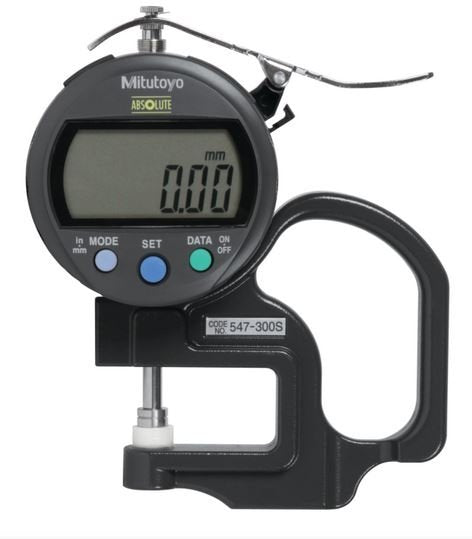

Mitutoyo 547-300S ABS Digital Thickness Gauge Inch/Metric, 0-0.4", 0.0005", Standard
Dial thickness gauges are useful for rapidly determining the thickness of thin materials like paper and felt.
• The bezel and crystal are integrated to prevent water and oil from penetrating through the front face.
• Data output port for use in measurement networking and statistical process control systems.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.0005 |
| Alarm | Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only) |
| Battery Life | approx. 7000 hours |
| Calculation function | Yes |
| Contact point | Thread # 4-48UNF |
| Counting direction switchable | Yes |
| DATA(output with cable)/HOLD(display value) | Yes |
| Digimatic data output | Yes |
| Digital step | 0.0005 |
| GO/+/-NG judgement | Yes |
| Inch-Metric | Inch/Metric |
| Indicator No. | 543-402BS (ID-C) |
| Lock function | Yes |
| Mass (main unit) | 255 g |
| Max. measuring depth | 30 mm |
| Max. Response Speed | Unlimited |
| Measuring Force | ¢°¤ 1.5 N |
| ON/OFF | Yes |
| Parallelism | 0.0005 |
| Power Supply | 1 battery SR-44 |
| PRESET | Yes |
| Range | 0 - 0.4 Inch |
| Scale | Capacitance type ABSOLUTE linear encoder |
| Type | Ceramic-tipped contact points |
| ZERO/ABS | Yes |
Dial thickness gauges are useful for rapidly determining the thickness of thin materials like paper and felt.
• The bezel and crystal are integrated to prevent water and oil from penetrating through the front face.
• Data output port for use in measurement networking and statistical process control systems.
