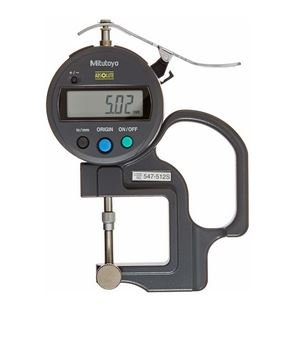

Mitutoyo 547-512S | ABS Digital Thickness Gauge | 0–0.47 in, 0.0005 in, Lens Thickness
Part Number : 547-512S
Mitutoyo 547-512S pairs a ID-S Digimatic indicator (543-783BS) with a lens thickness frame covering 0–0.47 in. The gauge is fitted with adjustable anvil, interchangeable. The 547-512S suits rapid thickness checks on thin materials, for example paper and felt. The 547-512S has a data port for networked measurement and statistical process control.
- Range 0–0.47 in, digital step 0.0005 in (547-512S)
- Indicator 543-783BS (ID-S) (547-512S)
- 30 mm maximum measuring depth
- 240 g main unit
- ZERO/ABS, preset, hold, lock and GO/±NG judgement (547-512S)
- SR-44 battery, approx. 7000 hours life on the 547-512S
Free UAE shipping available
For pricing, please contact our experts.
