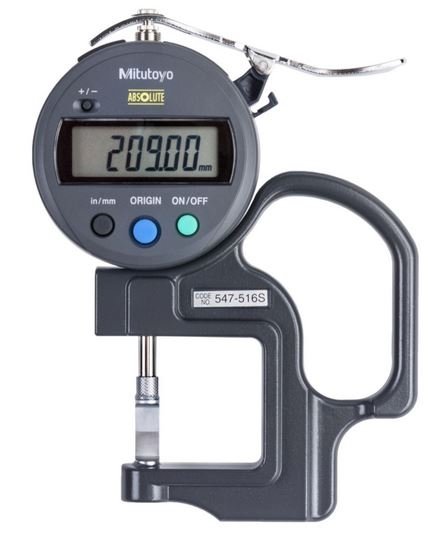

Mitutoyo 547-516S | ABS Digital Thickness Gauge | 0–0.47 in, 0.0005 in, Groove Depth
Part Number : 547-516S
Built as the groove depth version of Mitutoyo's ABS digital thickness gauge, the 547-516S reads in 0.0005 in digital steps over 0–0.47 in. Contact type: blade steel contact point. Gauges of this kind, including the 547-516S, measure thin materials such as paper and felt quickly. A data output port lets the 547-516S feed measurement networks and SPC systems.
- Range 0–0.47 in, digital step 0.0005 in (547-516S)
- Indicator 543-783BS (ID-S) (547-516S)
- Max. measuring depth 30 mm (547-516S)
- Main unit mass 260 g
- ABSOLUTE capacitance linear encoder (547-516S)
- Bezel and crystal moulded as one to keep water and oil out of the front face on the 547-516S
Free UAE shipping available
For pricing, please contact our experts.
