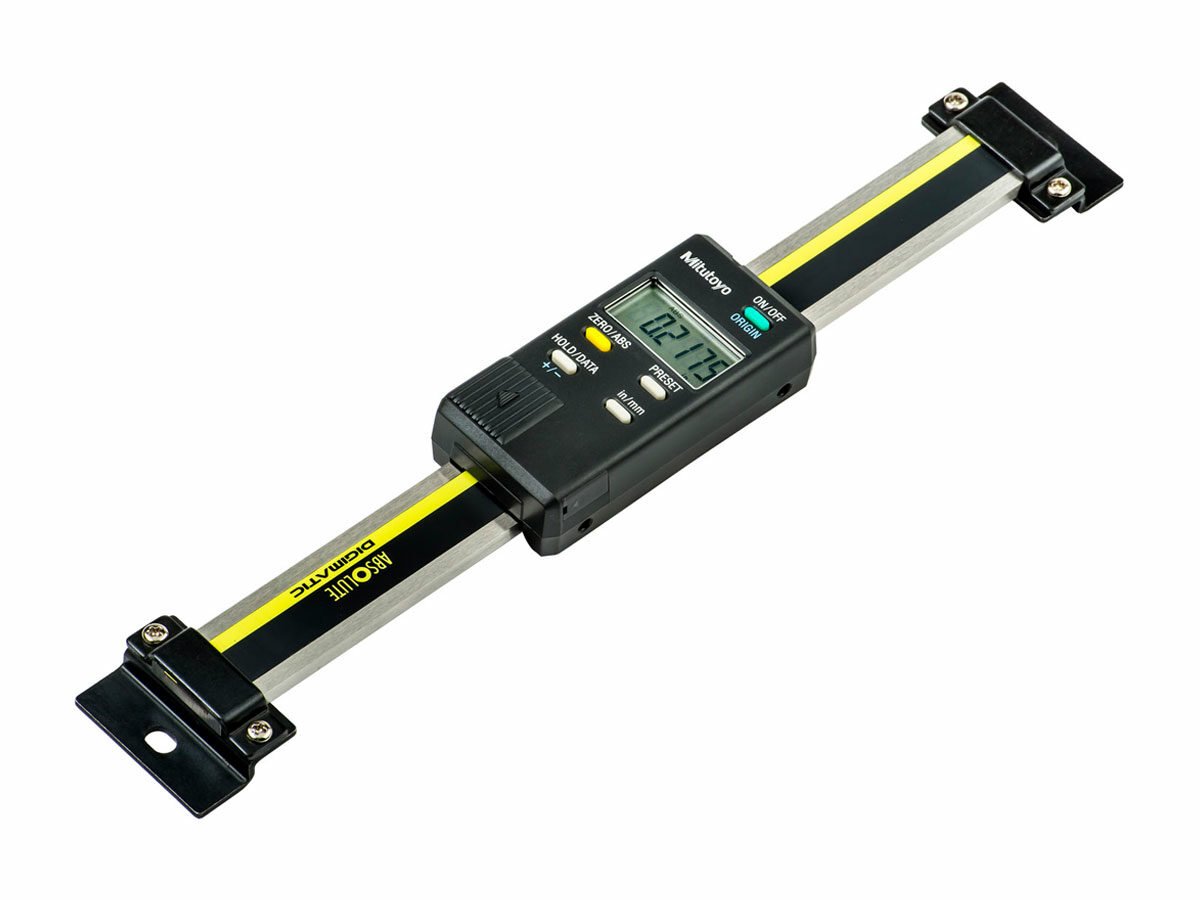

Mitutoyo 572-573 | Vertical Digimatic Linear Scale | 0–300 mm, 0.01 mm
Part Number : 572-573
Mitutoyo 572-573 is a vertical Digimatic scale with a 0–300 mm range, for mounting on jigs, tools and small machines. Its accuracy is 0.002 in / 0.04 mm with a resolution of 0.0005 in / 0.01 mm, and the unit weighs 0.37 kg.
- Built-in ABSOLUTE scale (ABS) for the 300 mm length, so no re-zeroing is needed at power-on
- Absolute zero point defined with the ORIGIN key across the 300 mm travel
- Single-function model; vertical readout to match the 572-573 mounting position
- Output port on the 572-573 for sending data to control and gauging systems
- Overall dimensions of this vertical model: L-1 444 mm, L-2 420 mm
Mitutoyo reduced overspeed errors on the 572-573, and external display units for EC counters are offered separately.
