Part Number : 579-406-51

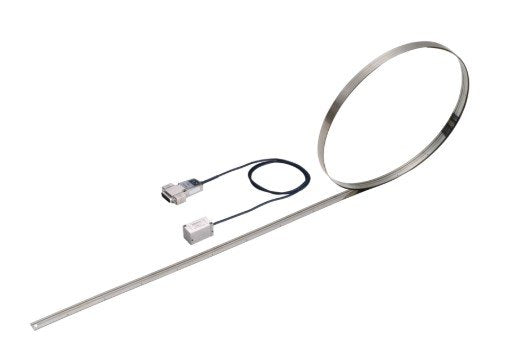

The Mitutoyo 579-406-51 Absolute Tape Scale from the ST1300 Series is engineered for high-precision linear measurements in industrial automation and motion control systems. It offers a maximum effective length of 12 meters, making it suitable for large-scale applications. With an impressive minimum resolution of 0.001 µm, it ensures ultra-fine measurement accuracy. The system supports a maximum response speed of 8 m/s, enabling rapid and precise positioning. Utilizing absolute measurement technology, it retains position data even after power interruptions, eliminating the need for re-zeroing. Built for durability and flexibility, it is ideal for demanding environments requiring both speed and precision.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ABSST1351A-00150E
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Measurement Technology – Retains position data without re-homing after power loss.
Extended Measuring Range – Supports up to 12 meters of effective length.
High Precision – Provides a minimum resolution of 0.001 µm for ultra-accurate measurements.
Fast Response Speed – Operates at speeds of up to 8 m/s for high-speed applications.
Flexible, Durable Tape Design – Suitable for complex machine layouts and harsh environments.
Optimized for Industrial Automation – Ideal for use in CNC machines, robotics, and precision motion control systems.

DOWNLOAD CATALOG
